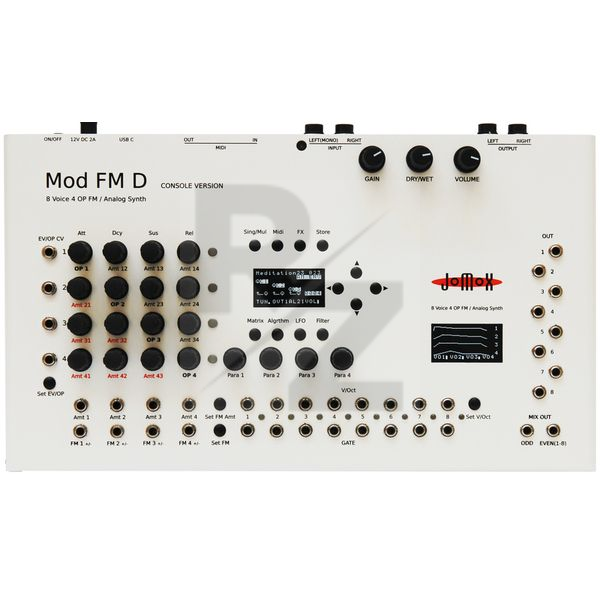

Jomox Mod FM D

Desktop FM Synthesiser

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Jomox
8 Voice FM-Synthesiser
Per voice: 4 operators and 26 algorithms, ADSR envelope per operator, 2x LFO/VCO, 2 analogue filters and analogue VCA
64 LFO waveforms
24 dB low-pass filter and 12 dB multimode filter (low-pass, band-pass, high-pass) with ADSR envelope
Metal noise sound source can be mixed in
Onboard effects: reverb and 2 x delay
8-Voice single mode or 8-voice multi mode selectable
Convenient operation via 20 encoders and two displays
Memory locations for 128 single presets and 128 multi presets
CV/gate inputs for each voice
12 CV inputs for external modulation sources
8 Voice ouputs and 2 mix outputs
MIDI In/Out: 5-pin DIN
USB-C port for USB-MIDI
Stereo outputs: 2 x 6.3 mm jack
Stereo inputs: 2 x 6.3 mm jack
Dimensions : 318mm x 180mm x 72mm
Weight : 1.9 Kg
Includes external power supply (12 V DC, 2 A)
