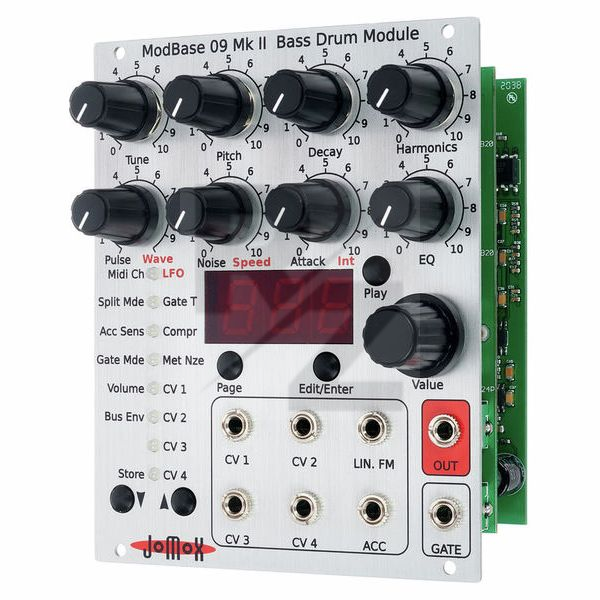

Jomox ModBase 09 MKII

Name: ModBase 09 MKII
Brand: Jomox
Price: 401 USD
Rating: 93 (3 reviews)

Eurorack Bass Drum Module

93/100

based on 3 reviews.

Write your own review

2 reviews

1 review

no review

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Latest User Reviews

4 years ago

The Ultimate Kick

This is the ultimate kick drum for euro rack. You won't find anything like this monster IMO it's well worth the investment. Iv'e used the hardware module and other Jomox gear but if your in to modular and need a kick drum then this is it I shit you NOT!

4 years ago

Massive sound, clunky interface

It's been said before, and applies to a number of Jomox products: it sounds amazing, heavy, punchy, boomy phat. But it looks kinda like a DIY project from the 90s, and the user interface feels that way too. But hey, if you want the biggest baddest bass drums on the block then this is the price you pay.

5 years ago

Incredible Kick

If you want to have dedicated analog kick drum in eurorack format without any compromises on sound quality and features you do not have many options. One woudl say, there's a quite a lot time passed since first release of this module and there's no visible changes on MKII. And that's true, JOMOX did visually the same module with it's pros and cons. It's huge in size, it has crazy oldschool LCD display while other current modules has build in IPS panels, it has midi IN/OUT on backside of the module so you cannot use them without some DYI solution ... BUT THE SOUND!!! It's incredible how this kick sounds. You can create a large pallete on analog kicks and you can save your creations to memory and load them later! Best sounding and versatile kick in eurorack by my opinion. Higly recommended.

Technical Data

Manufactured by Jomox
Released in 2020
Average price : $401
Analogue VCO
Tunable from 10 - 175 Hz
Adjustable parameters: Tune, pitch, decay, harmonics, pulse, noise, attack and EQ
2 LFOs with 16 unipolar and bipolar waveforms
Memory for 100 presets
Control of all parameters via MIDI controller
4 CV inputs, assignable to all parameters
Linear FM input
Trigger and Accent inputs
Audio output
MIDI in/out (5-pin DIN)
Current consumption: 140 mA (+12 V) / 80 mA (-12 V)
Width: 20 HP
Depth: 53 mm
