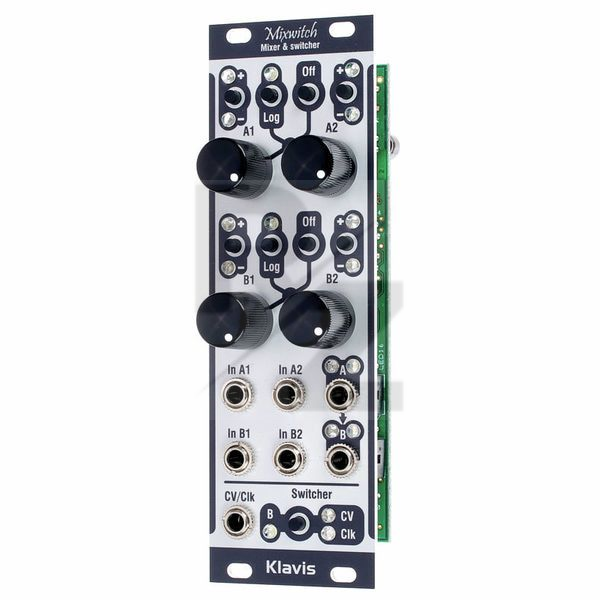

Klavis Mixwitch

Technical Data

• Manufactured by Klavis
• Released in 2018
• Average price : $139
• Mixer / switcher
• Dual 2: 1 mixer
• Normalised 4: 1
• Click-free mute
• Click-free polarity reversal per input with LED indicator
• Modulation vs. Audio mode selection (lin / log) pr mixer
• 2 LEDs on each output indicate the amplitude and polarity of the output signal
• Non-connected inputs have a fixed voltage to facilitate offset generation
• DC-coupled analogue signal path
• Switch between 4 inputs, only 2 or disabled
• Input sequential or random via clock / trigger selectable
• Input selectable depending on the control voltage
• Settings are retained via the circuit
• Current consumption: 39 mA (+12 V) / 24 mA (-12 V)
• Dimensions: 8 TE / HP x 25 mm (W x D)
