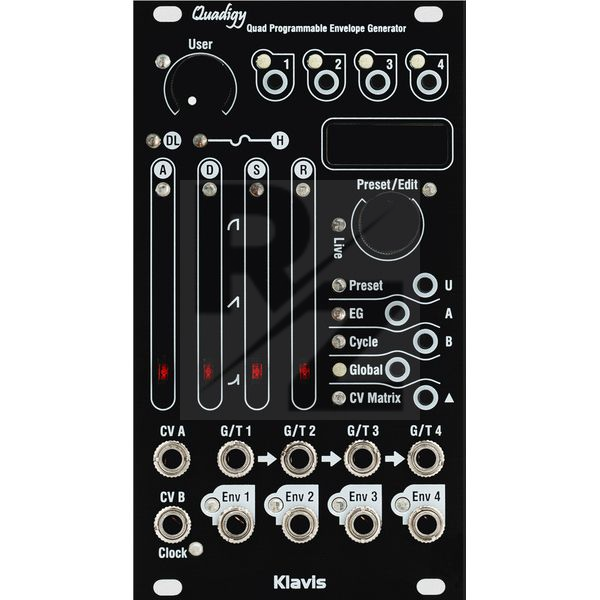

Klavis Quadigy Black

Eurorack Module

Image Klavis Quadigy Black

Rating :

1
2
3
4
5

stars

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

  • Manufactured by Klavis
  • Average price : $329
  • Quad Envelope Generator
  • 4 Channels with 7-stage envelope each
  • Freely adjustable progression of all time segments
  • Attenuator per envelope output
  • Cycle mode with time stretching and synchronisation to internal clocks
  • Tap tempo with multiplication/division
  • Programmable CV matrix for modulating parameters via the CV A and CV B inputs
  • Memory locations for 32 presets
  • Morphing function for presets and CV matrix
  • Multi-editing for polyphonic applications
  • Simplified live mode
  • Graphic display
  • 4 Trigger inputs
  • 4x Gate/Trigger input
  • Power consumption: 24mA (+12V) / 10mA (-12V) / 40mA (+5V)
  • Width: 14 U
  • Depth: 38 mm
