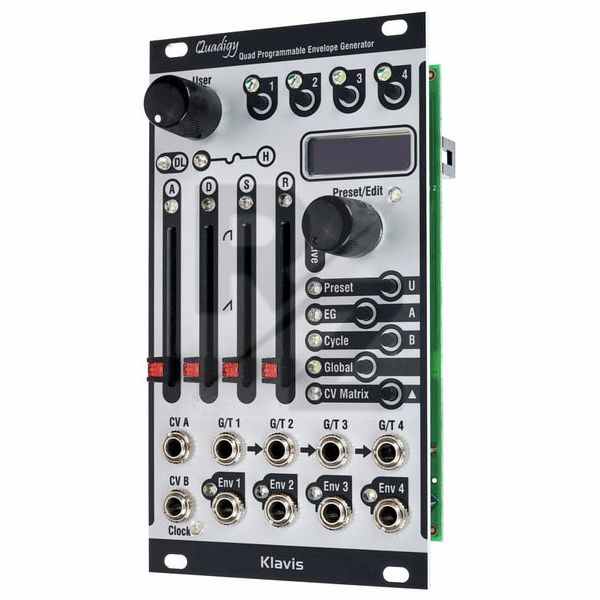

Klavis Quadigy

Technical Data

• Manufactured by Klavis
• Released in 2019
• Average price : $316
• Quad Envelope Generator
• 4 Channels with 7-stage envelope each
• Waveform of all time segments freely adjustable
• Attenuator per envelope output
• Cycle mode with time stretching and synchronisation to internal clocks
• Tap tempo with multiplication/division
• Programmable CV matrix for modulating parameters via inputs CV A and CV B
• 32 Presets can be stored
• Morphing function for presets and CV matrix
• Multi-editing for polyphonic applications
• Simplified live mode
• Graphic display
• 4 Gate/trigger inputs
• 4 Envolope outputs
• Current consumption: 24 mA (+12 V) / 10 mA (-12 V) / 40 mA (+5 V)
• Width: 14 HP
• Depth: 38 mm
