Korg Minilogue XD inverted

Hybrid Synthesiser

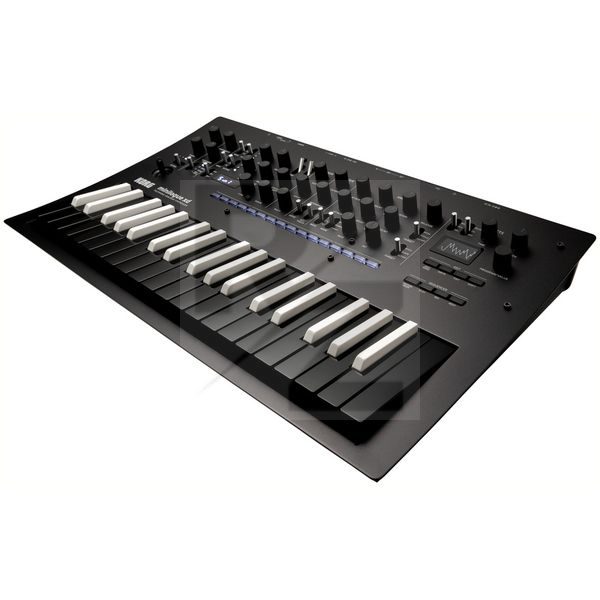

Image Korg Minilogue XD inverted

Rating :

1
2
3
4
5

stars

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

  • Manufactured by Korg
  • Limited special model with inverted coloured keys
  • 4-Voice polyphonic
  • 37 Velocity-sensitive slim keys
  • Two analogue VCOs and digital multi-engine oscillator (noise, FM, user wavetables) per voice
  • 2- Pole filter with drive circuit
  • 1 VCA, 1 LFO, 2 envelopes
  • Oscillator sync and ring modulation
  • 500 Sounds storable (200 presets + 300 users)
  • Digital effects section with modulation effects, delay and reverb
  • Four voice modes (poly, unison, chord, arp / latch)
  • Joystick for pitch bend and modulation
  • Micro tuning with 23 preset and 6 user scales
  • Polyphonic 16 step sequencer with motion sequencer
  • Display of the generated waveform via oscilloscope function in the OLED display
  • 44 Controls for direct access to all parameters
  • Control panel made of robust aluminium
  • Back panel made of real wood
  • Stereo line output: 2 x 6.3 mm jack
  • Headphone output: 6.3 mm stereo jack
  • Sustain pedal input: 6.3 mm jack
  • Sync in/out: 3.5 mm mono mini jack
  • CV in: 2x 3.5 mm mini jack
  • MIDI in/out
  • USB B
  • Dimensions : 500mm x 300mm x 85mm
  • Weight : 2.8kg
  • Includes 9 V DC power supply (KA350)
