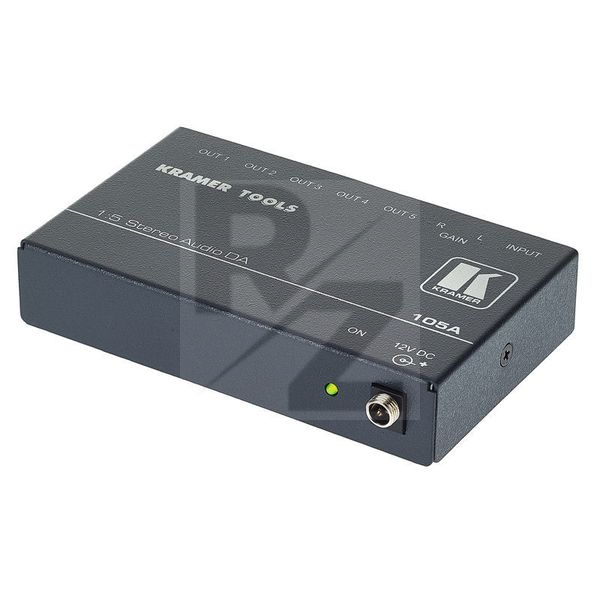

Kramer 105A

Audio Distribution Amplifier

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Kramer
Average price : $196
1:5 Audio distribution amplifier for unbalanced stereo audio signals
Stereo input distributes the signal to 5 identical stereo outputs
Level (gain) control
Compact Kramer TOOL - 3 units can be mounted side by side in a 19-inch rack (1 U) using the optional RK-3T adapter
Includes power supply and mounting bracket
Input: 1 Unbalanced stereo/balanced mono, 1Vpp/33kΩ on a 3.5mm mini jack
Outputs: 5 unbalanced stereo/balanced mono, 1Vpp/50Ω on 3.5mm mini jacks
Max. output level: 5 Vpp
Bandwidth (-3 dB): 20 kHz
Signal-to-noise ratio: 80 dB (unweighted)
Control: Trim control on the back of the unit for right and left channel (0/+3.5 dB range)
Coupling: AC
Audio THD+noise: 0.03% (2nd harmonic)
Power supply: 12 V DC / 100 mA
Dimensions: 12 x 7.5 x 2.44 cm
Weight : 0.1kg
