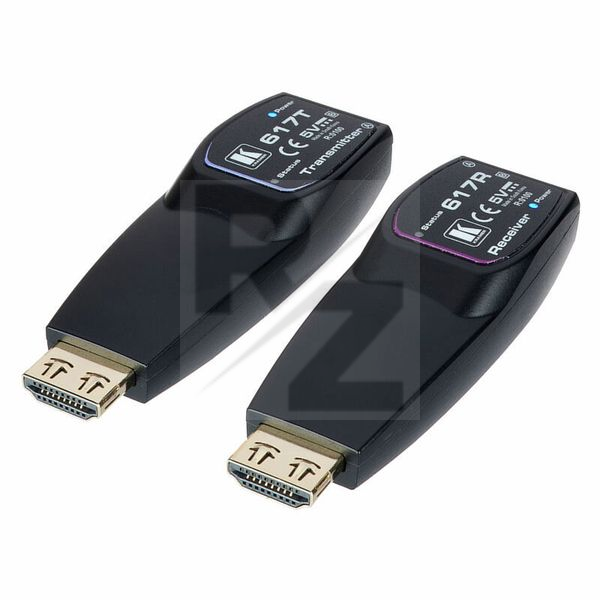

Kramer 617R/T 4K HDR HDMI Extender

Compact fibre optic transmitter and receiver

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Kramer
Released in 2021
Average price : $767
For extending HDMI 2.0 signals over fibre optic cables
Supports 4K@60 (4:4:4) resolution with up to 100 m on a dual LC multimode fibre optic cable
High quality 24K gold plated connectors
Corrosion resistant for the best possible connectivity
K-Lock pull-resistant connectors, 15 lbs retention force for a non-slip connection
Includes 2 micro USB to USB type A cables, 2 wall power adapters
Max. video resolution: 4 K @ 60 Hz 4:4:4 (4096x2160)
Max. data rate: 6Gbps per channel
Compatibility: supports HDMI 2.0, HDCP 2.2, EDID and CEC
Data ports: 617T (source) HDMI connector, 617R (display) HDMI connector, 617T (source) and 617R (display): each Micro USB (for power supply)
Power supply 5 V via USB source, via external source or HDMI pin # 18 (617T only)
Power consumption: < 2.5 W
Recommended cable specifications: Dual-multimode OM3 (50 / 125um) fibre optics
Optical connectors: Duplex LC connectors
Max. fibre attenuation (Lambda = 850 nm): 2.5dB/KM
Max. skew: 0.4 ns
Max. insertion loss: 0.5 dB
Total optical attenuation: 1 dB max @ 328 ft / 100 m extension
Max. length: 100 m (330 ft)
