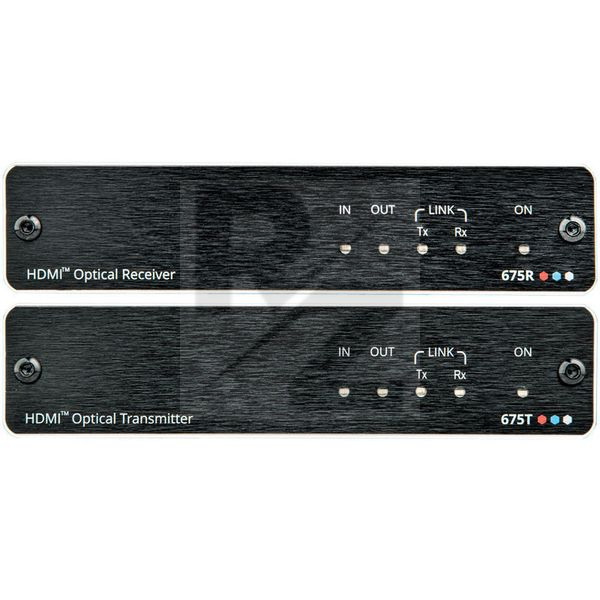

Kramer 675R/T Extender Kit

4K60 4:4: 4 HDMI Extender Kit via Ultra-Reach MM/SM Fibre.

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Kramer
Released in 2021
Average price : $2267
675T converts the HDMI input signal to an optical signal, which is transmitted via a fibre optic cable to the 675R, which converts it back to an HDMI signal
Includes 2 multi-mode SFP+ transceivers, but can be used with any Kramer certified SFP+ transceiver, such as a single-mode SFP+ transceiver
Enables the transmission of ultra-reach signals over multi-mode or single-mode fibre infrastructures using Kramer's pluggable OSP SFP+ units.
Nearly latency-free video chroma subsampling conversion technology is used to automatically match HDMI signals above 10G to the data rate of 10G optical link signals
HDCP 2.2 compliant and supports up to 18G (6G per channel) data rate, LPCM 7.1, Dolby True HD and DTS-HD as specified in HDMI 2.0
Housing: Aluminium
Cooling: Convection ventilation
Dimensions: 12.0 x 7.15 x 2.44 cm
Weight : 0.5kg
Scope of delivery: 2x MM SFP+ transceiver, 2x power supply unit, 2x mounting kit
Fibre optic cable: 1x LC connector(s)
HDMI: 1x HDMI socket
Ports: 1x Micro USB socket
Max. bandwidth: 18Gps
Max. resolution: 4096x2160@60Hz 4K@60 (4:4:4)
Optical fibre: multi-mode (MM) or single-mode (SM)
Optical module: Kramer 10Gbps SFP+ IEEE 802.3ae compliant modules (MM is included).
Compliance: G.651.1 OFNR fibre
Maximum range over OM3 MM fibre: 3km
Conformity: G.652D OFNR fibre
Maximum range over OS1 SM fibre: 33 km
675T Consumption: 280 mA
675R consumption: 220 mA
Source: 12V DC, 2A
