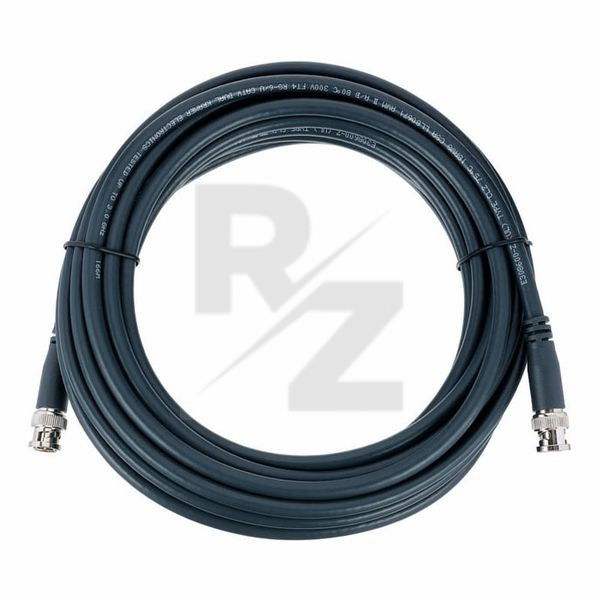

Kramer C-BM/BM-25 Cable 7.6m

3G HD-SDI BNC Coaxial Cable

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Kramer
Average price : $24
Length: 7.6 m
Made from a high-performance RG-6 coaxial cable with 75 Ohm BNC plugs at both ends
Inner conductor: 18 AWG solid copper wire
Dielectric: Foam skin
Shielding: (A) 61% aluminium wire braid 34 AWG, (B) double foil / Mylar with 25% overlap
Outer sheath: PVC
Colour: Dark grey
Inner conductor diameter: 1.0 mm
Diameter of dielectric: 4.6 mm
Outer diameter: 7.0 mm
Impedance: 75 Ohm
Ohmic resistance: 21.8 Ohms / km
Capacitance: 53.1 pF / m
Tested up to 3G
