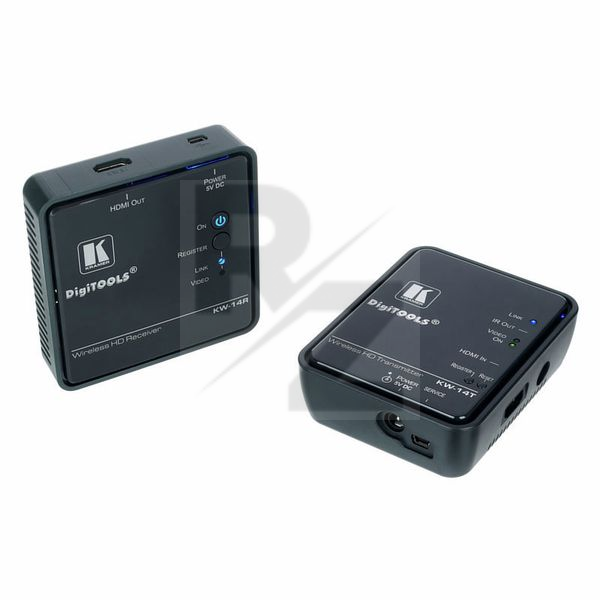

Kramer KW-14

Wireless HD HDMI Transmission System

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Kramer
Released in 2020
Average price : $1340
Set consists of KW-14R receiver and KW14T transmitter
Deep colour up to 12 bit
Transmits to up to four receivers simultaneously
Receivers can be paired with multiple transmitters
Secure connection via 128 bit AES encryption
Latency-free transmission
Range: up to 30 m
IR remote control with on-screen display
Input: 1x HDMI socket (KW-14T)
Output: 1x HDMI jack (KW-14R), 1x IR with 3.5 mm jack
Video resolution: Up to 1080p @60 Hz, 8, 10 or 12 bit colour depth as well as VESA up to 1920x1080 @60 Hz
Video formats: RGB and YCbCr digital video
Max. data rate: 6.75 GBit/s (2.25 GBit/s per colour channel)
Audio formats: PCM, Dolby Digital 2/0, Dolby Digital 2/0 Surround, Dolby Digital 5.1, Dolby Digital Surround EX, DTS 2 channel, DTS Digital Surround 5.1, DTS 96/24
Audio data rate: digital audio via HDMI input up to 6 MBit/s
HF transmission range: 5.19 to 5.795 GHz
Transmit power: <18 dBm (KW-14T), <12 dBm per channel (KW-14R)
Sensitivity: -75 dBm (KW-14T), 65 dBm (KW-14R)
System latency: <1 ms
Power consumption: 5 VDC 1 A (KW-14T), 5 VDC 1.2 A (KW-14R)
Dimensions: 9.5 x 9.5 x 3.4 cm
Weight : 0.3kg
Includes power supply 5 V, 2x HDMI cable 0.9 m and 1x IR emitter cable
