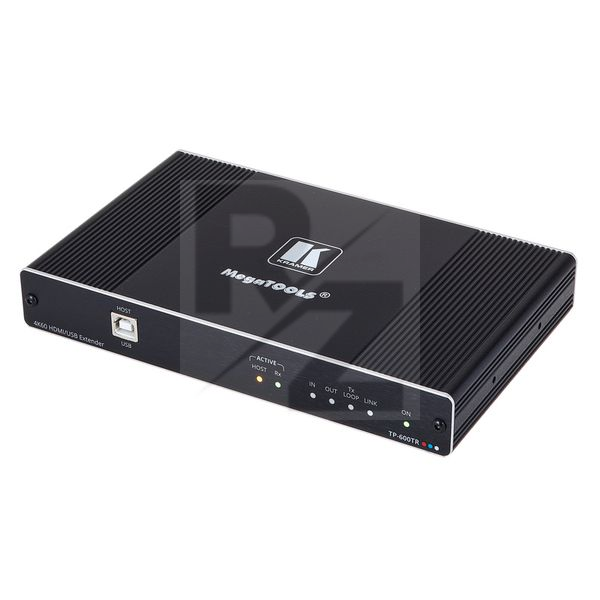

Kramer TP-600TR HDBaseT Extender

Technical Data

• Manufactured by Kramer
• Released in 2022
• Average price : $704
• Can be used either as transmitter or receiver
• Long range 4K60Hz (4:4:4) capability
• HDMI, USB, RS-232 and infrared signals via CAT cable
• Aluminium housing
• Convection ventilation
• Dimensions : 19.0mm x 11.6mm x 2.7 cm
• Weight : 0.6kg
• Incl. mains adapter, holder and rubber feet
• Transmitter-side inputs: 1 x HDMI
• Outputs on the receiver side: 1 x HDBT with an RJ-45 socket
• Transmitter-side outputs: 1 x HDBT with an RJ-45 socket, 1 x Loop with an HDMI socket
• Outputs on the receiver side: 1 x HDMI
• Data connections:
• 1 x USB 2.0 host: USB-B socket
• 3 x USB 2.0 devices: USB type-A sockets
• 1 x IR: 3.5 mm mini jack for extending the IR connection
• 1 x RS-232: 3-pole terminal strip to extend the serial connection
• Extension cable: up to 40 m: at 4K@60Hz (4:4:4), up to 70 m: up to 4K@30Hz (4:4:4), both when using Kramer HDBaseT cables
• Compliance with standards: HDBaseT 3.0
• Max. video data rate: 18 Gbps bandwidth (6Gbps per graphics channel)
• Max. resolution: 4K@60Hz (4:4:4) 24bpp
• Content protection: HDCP 2.3
• HDMI support: 4K as specified in HDMI 2.0b
• Enhanced USB: Data rate: Up to 480Mbps
• Transmitted data bandwidth: Up to 300Mbps
• Compliance with standards: USB 1.1 and 2.0
• Extended RS-232: Baud rate: 300 to 115200
• Power supply: 12 V DC, 2 A
• Consumption: 600 mA
• Max. USB charging power: 2 A
