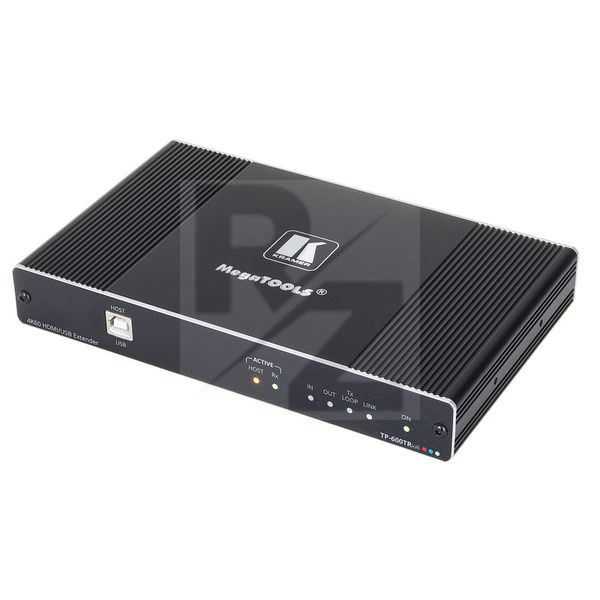

Kramer TP-600TRxr HDBaseT Extender

Technical Data

• Manufactured by Kramer
• Released in 2022
• Average price : $1152
• 4K60 4:4:4 HDBaseT 3.0 high-performance receiver/transmitter with USB, Ethernet, RS-232, and infrared via HDBaseT 3.0 with long range via CAT cable
• Can be used either as a transmitter or as a receiver
• As a transmitter TP-600TRxr converts any incoming signal into an HDBaseT 3.0 signal and sends it to the receiver
• If the TP-600TRxr is used as a receiver, it receives the incoming HDBaseT 3.0 signal and converts it again into the individual signals
• The video signals are extended up to 100 m at 4K@60Hz (4:4:4) via CAT cable
• HDMI support: complies with the HDCP 2.3 standard
• Supports transmission of EDID and CEC commands from input to output
• Supports HDR10, deep colour, x.v.Color, lip sync, uncompressed HDMI audio channels, Dolby TrueHD, DTS-HD, 2K, 4K and 3D as specified for HDMI 2.0
• HDMI loop output
• USB 2.0 transmission
• Multi-channel audio transmission
• Ethernet transmission: RS-232 bidirectional extension
• Bidirectional infrared extension
• Input: 1 x HDMI female, 1 x HDBT RJ-45 female
• Output: 1 x HDBT RJ-45 female, 1 x Loop HDMI female, 1 x HDMI female
• Data ports: 1 x USB 2.0 host (USB-B female), 3x USB 2.0 device (USB-A female), 1 x 1000BaseT Ethernet RJ--45 female, 1x IR (3.5mm mini jack) and 1 x RS-232 (terminal block)
• Range: up to 100 m when using Kramer cables and compliant with standards: HDBaseT 3.0
• Max. video data rate: 18 Gps (6 Gbps per channel)
• Content Protection: HDCP 2.3
• HDMI Support: 4K as specified in HDMI 2.0b
• Extended USB: Data rate: Up to 480 Mbps, transmitted data bandwidth: Up to 300 Mbps
• Compliance with standards: USB 1.1 and 2.0
• Enhanced Ethernet: max. data rate: 1 Gbit/s
• Extended RS-232: baud rate: 300 to 115200
• Power supply: 12 V DC, 5A
• Power consumption: 3.2 A
• Max. total power for charging USB devices: 2A
• Housing: Aluminium
• Cooling: Convection
• Size: Mega Tools
• Dimensions: 19 x 11.5 x 2.7 cm
• Weight : 0.6kg
• Includes mains adapter, bracket, rubber feet
