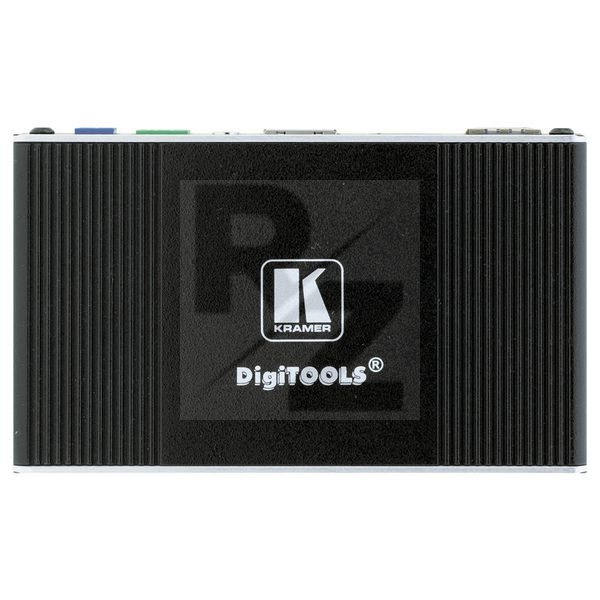

Kramer TP-789Rxr HDBaseT Receiver

Technical Data

• Manufactured by Kramer
• Released in 2020
• Average price : $730
• With Ethernet, RS-232 and IR via extended-reach HDBaseT
• Transmits video signals over copper cable up to 100m at up to 4K@60Hz (4:2:0) resolution and 24bpp, and provides even more range for lower HD video resolutions
• Powers a POE (Power over Ethernet) device such as a PoE wallplate via the copper extension cable or accepts PoE via the extension cable of a remote PoE transmitter device - this is automatically detected by the device.
• HDMI signal extension: supports Deep Color, x.v.Color, lip sync, uncompressed HDMI audio channels, Dolby TrueHD, DTS-HD, 2K, 4K and 3D
• EDID and CEC signals routed from source to display
• Intelligent EDID pass-through algorithm that ensures plug-and-play operation for HDMI source and display systems
• Multi-channel audio extension: Up to 32 uncompressed digital stereo signals to support studio-quality surround sound
• Ethernet extension: Ethernet interface data is transmitted in both directions, allowing Ethernet connectivity to be extended up to 100 Mbps for LAN communications and equipment control
• RS-232 bidirectional extension: serial interface data flows in both directions, enabling data transfer and unit control
• Bidirectional infrared extension: IR interface data flows in both directions and enables remote control of peripherals at both ends of the extended line
• Includes power supply unit and mounting brackets
• Input: 1x HDBT: on an RJ-45 socket
• Output: 1x HDMI
• Data ports: 1x IR on a 3.5 mm mini jack / 1 RS-232 on a 3-pin terminal block for serial connection extension and unit firmware update / 1x 100BaseT Ethernet on an RJ-45 jack for LAN extension
• Extension: HDBaseT 1.0 compliant / Up to 100 m with 4K @60 Hz (4:2:0) / Up to 130 m with Full HD (1080p @60 Hz 36 bpp) / Up to 180 m in HDBaseT Ultra Mode and Full HD (1080p @60 Hz 24 bpp) / (Values apply when using Kramer HDBaseT cables).
• Video: Up to 10.2 Gbps bandwidth (3.4 Gbps per graphics channel) / Up to 4K UHD @60 Hz (4:2:0) 24 bpp resolution.
• Ethernet extension: Up to 100 Mbps bandwidth
• RS-232 extension: 300 to 115,200 bit/s
• Cooling: Convection ventilation
• Power supply: 48 V DC 370 mA
• Dimensions: 12 x 7.2 x 2.4 cm
• Weight : 0.3kg
