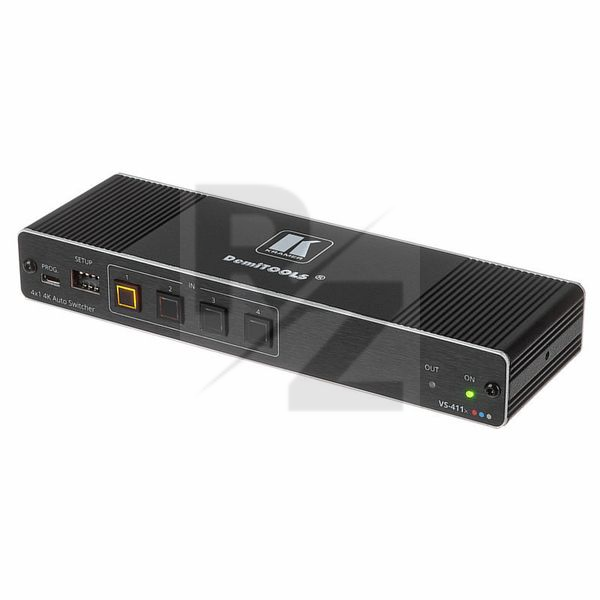

Kramer VS-411X 4K HDR HDMI Switcher

Technical Data

• Manufactured by Kramer
• Released in 2020
• Average price : $601
• 4-in-1 4K HDR HDMI Switcher
• Plug & Play Auto Switcher: automatically plays the switched source signal on the connected display according to user-configured settings such as priority or last connected input
• If the user switches manually by pressing a button, the automatic switching is overridden
• HDMI signal switching: HDCP 2.2 compatible
• Supports Deep Color, x.v.Color, CEC, lip sync, uncompressed HDMI audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as per HDMI 2.0
• Multi-channel audio switching: up to 32 channels of uncompressed digital stereo to support studio-quality surround sound
• I-EDIDPro Kramer Intelligent EDID Processing: intelligent EDID handling, processing, locking and pass-through algorithm ensures plug & play operation for HDMI source and display systems
• Audio de-embedding: the digital audio signal coming to the HDMI output is extracted, converted to an analogue signal and sent to the unbalanced analogue stereo audio output
• This allows the audio signal to be played back via locally connected speakers, in parallel with playback from built-in speakers (e.g. TV with speakers)
• Simple switching operation: local buttons or remote contact closure buttons for flexible selection of user inputs and switching control
• Status LED indicators for HDMI connections facilitate local maintenance and troubleshooting
• Inputs: 4 HDMI sockets
• Outputs: 1 HDMI socket
• 1 Unbalanced stereo audio 3.5 mm mini jack
• Data protocols: Remote contact: 5-pin terminal block
• Max. data rate: 17.82 Gbit/s (5.94 Gbit/s per graphics channel)
• Max. resolution: 4K @ 60 (4:4:4)
• Compliance: HDR10 according to HDMI 2.0, HDCP 2.2
• Power supply: 5 V DC 2A
• Power consumption: 5 V DC, 600 mA
• Housing: DemiTools size / aluminium
• Convection cooling
• Dimensions (W x D x H ): 19 x 6 x 3 cm
• Weight : 0.3kg
