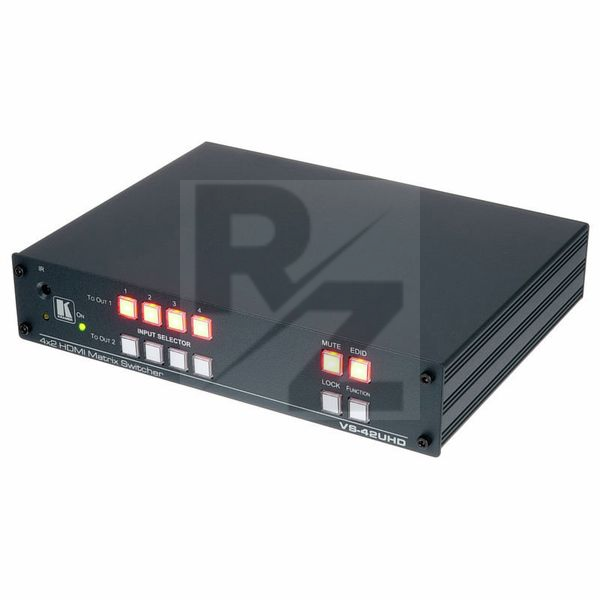

Kramer VS-42 UHD Matrix Switcher

Technical Data

• Manufactured by Kramer
• Released in 2019
• Average price : $1290
• 4x2 4K@60 4:2:0 HDMI Matrix Switcher
• Re-clocks signals, equalises them and can route each input to one or both outputs simultaneously
• Resolutions up to UXGA and 4Kx2K
• HDCP compliant
• Automatic switching (last connected / priority)
• Video clock detection
• Managed by Kramer Network
• Max. data rate: 8.91 GBit/s (2.97 GBit/s per graphics channel)
• Max. resolution: 4K @60 Hz (4:2:0) and WUXGA
• Automatic switching modes: last connection and priority switching
• HDMI support: 3D, Deep Colour, x.v.Color, Lip Sync, Dolby TrueHD, Dolby Digital Plus, DTS-HD and 7.1 PCM
• Kramer's intelligent I-EDIDPro EDID processing: intelligent EDID processing algorithm ensures plug and play operation for HDMI systems
• Programmable step-in functionality when used with compatible step-in devices such as the SID-X3N with an HDMI cable that supports HEC (HDMI Ethernet Channel)
• Non-volatile EDID memory
• Static or dynamic DHCP IP addressing
• Embedded web pages: allow remote configuration and operation
• Lock button prevents unintentional operation of front panel buttons
• Kramer Protocol 3000
• Multiple control options: front keys, RS-232, Ethernet
• Includes power adapter
• Suitable accessories: infrared remote control RC-IR3 and remote IR receiver (both not included in delivery)
• Inputs: 4x HDMI
• Outputs: 2x HDMI
• Data ports: 1x Ethernet with RJ-45 socket
• 1x IR with 3.5 mm socket,12x remote dial contact closes 13 contacts
• 1x Serial port with 3-pin terminal block
• 1x Programme port with mini-USB
• Bandwidth: 8.91 GBit/s data rate (2.97 GBit/s per graphics channel)
• Max. resolution: UXGA / 4Kx2K
• Supported baud rates: 9,600 and 115,200 bit/s
• Power supply: 100 - 240 V AC, 65 VA max.
• Current consumption: 880 mA, 5 V DC
• Dimensions: 21.5 x 16.3 x 4.4 cm
• Weight : 0.9kg
