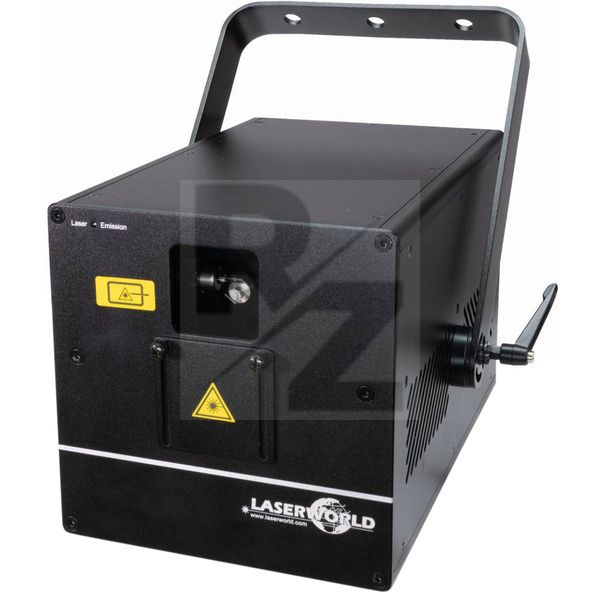

Laserworld CS-24.000RGB FX

Technical Data

• Manufactured by Laserworld
• Average price : $4744
• 22 W pure diode RGB laser system
• Two built-in grating effects: Line and Burst
• Scanner: 28 kpps @ 8° ILDA
• Galvo system
• Switchable effect grating
• Full-colour laser with analogue modulation
• Adjustable beam diaphragm on the outlet window
• 360° Mounting bracket
• Total power: 22,200 W
• Guaranteed power: 22,000 mW
• Red: 5,000mW / 638nm
• Green: 5,200mW / 520nm
• Blue: 12,000mW / 450nm
• Beam data: approx. 6 mm / 1,3 mrad
• Laser class 4
• Operating modes: automatic mode, music mode, DMX, ILDA, master-slave
• Basic patterns: approx. 130 (levels, tunnels, grids, waves, etc.)
• Effect gratings
• Accessories included: power cable, operating instructions, interlock, key
• IP protection class: IPX4
• Power supply: 85V - 250V AC
• Power consumption: 400 W
• Dimensions: 40 x 24 x 22 mm
• Weight : 19kg
