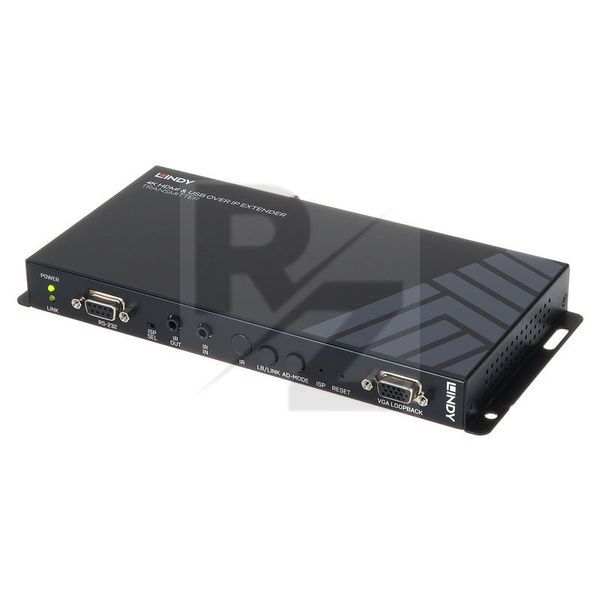

Lindy 4K HDMI Over IP Extender TX

Technical Data

• Manufactured by Lindy
• Released in 2022
• Average price : $568
• Extends 4K HDMI or VGA, USB, IR and RS232 signals over a Gigabit IP network - includes video wall function
• Supports point-to-point installation up to 100m (393ft) and point-to-multipoint installation with a Gigabit switch (also for video walls)
• Extends USB 2.0, USB HID (for KVM functions), bidirectional analogue audio, bidirectional IR and RS232 signals
• AV interface: HDMI & VGA
• Console interface: USB
• Interface standard: HDMI 2.0, USB (HID) and USB 2.0
• Supported bandwidth: 10.2Gbit/s
• Max. range: 100 m (point-to-point)
• Max. resolution: 3840x2160 60Hz 4:2:0 8Bit (VGA max 1920x1200 60Hz)
• HDCP support: HDCP 1.4 and 2.2
• Audio: audio is supported via the HDMI signal and 2x analogue bidirectional (1 x audio and 1 x microphone)
• Transmission protocol: IP
• Transmission medium: Cat.6
• Video codec: Motion JPEG
• Latency: approx. 33 ms
• Special features: Video Wall function (up to 16x16 screens)
• VGA input & output support (max. resolution 1920x1440)
• Bidirectional IR and serial RS232 extension
• Dimensions (WxDxH): 232 x 25 x 108 mm
• Weight : 0.67kg
• Transmitter KVM Interfaces: HDMI (socket), 2x VGA (socket), 1x USB 2.0 type B (socket), 2x 3.5mm audio (socket)
• Transmitter extension port: RJ45 Gigabit Ethernet (PoE support)
• Bi-directional ports: 1 x DB9 (male) for RS232
• Other ports: 2x 3.5mm (female) for bidirectional IR
• Power supply / power adapter: 5.5/2.1 mm DC socket
• 1x 4K HDMI & USB Over IP Extender - Transmitter (Receiver not included).
• 1x IR Receiver
• 1x IR Transmitter
• 1 Multi-country power supply (EU, UK, US, AUS)
