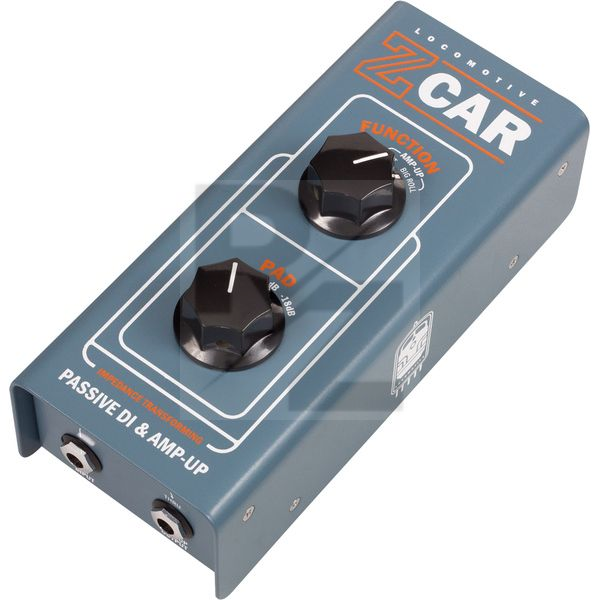

Locomotive Audio Z-Car DI

Passive DI and Reamping Box

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Locomotive Audio
Use as DI or reamping box
Mu-Metal iron transformer
Converts instrument level to microphone level in DI mode
Converts line level to instrument level in amp-up mode
Pad: 0 dB
-12 dB and -18 dB - works in DI and amp-up mode
2 Reamping modes: Flat and Big Roll
Big Roll: Filter from 1 kHz with 6 dB/octave for slight attenuation of the high frequencies
Amp-up input impedance: > 2 kO
Di input impedance: 324 x input impedance of the connected preamplifier
388 KO: -12 dB Pad
324 kO: -18 dB Pad
Ground lift
