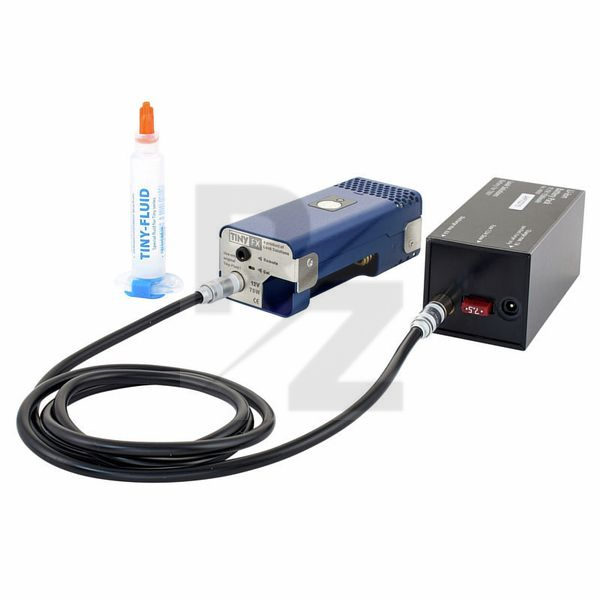

Look Tiny FX

Technical Data

• Manufactured by Look
• Released in 2016
• Average price : $1096
• The latest, further developed version of the successful Tiny series
• By installing a smaller, efficient pump, the size and weight of the unit was further reduced
• The syringe-shaped fluid container is screwed directly into the device, removing the need for an external fluid tank with fluid tube
• Thus the TINY FX consists only of two components: Fog unit and battery
• Control via a button integrated into the lid or via the included wired remote control
• The device can also be triggered via a wireless remote control (not included) or by a DMX converter via DMX 512
• Heating power: 70 W
• Power supply: 11.1 V battery
• Heating up time: 0.5 s
• Fluid tank capacity: 5 ml
• Fluid consumption: 2.3 ml/min (continuous output)
• Continuous output with included battery: 10 min
• Dimensions: Fog unit: 98 x 44 x 34 mm, Battery: 105 x 44 x 41 mm
• Weight : Fog unit: 0.18kg, Battery: 0.2kg
• Tiny FX
• Battery pack 11.1 V
• Battery cable
• Charger
• Cable remote including cable
• 6 Fluid containers, 5 ml each, screw mount
• Refill set
• Case
