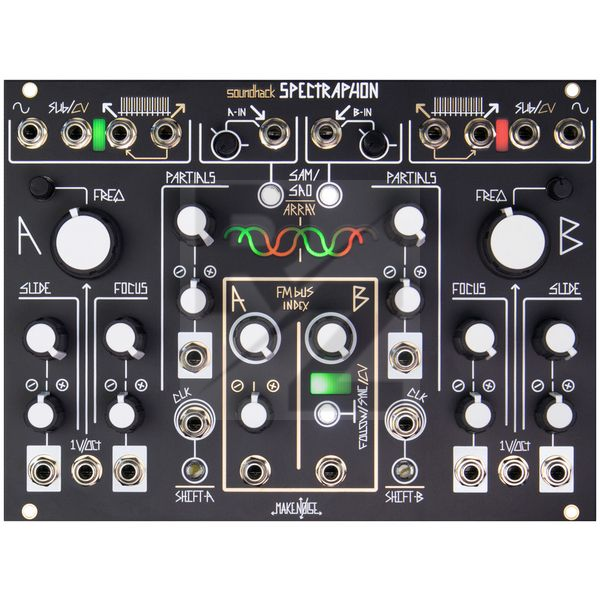

Make Noise Spectraphon

Eurorack Module

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Make Noise
Average price : $730
Dual Spectral Oscillator
Digital dual VCO based on real-time spectral analysis and resynthesis
Two operating modes per VCO: SAM (Spectral Amplitude Modulation) generates even and odd harmonics based on the input signal, SAO (Spectral Array Oscillation) for classic VCO operation, whereby the sampled input signal can also serve as the basis
Per channel: Controls for coarse and fine-tuning, controls for slide, focus and partials (each with CV input and bipolar attenuator) for controlling spectral analysis and overtone structure, pitch and clock inputs, signal input with level control, 4 audio outputs
FM modulation bus with CV inputs
VCO B synchronisable to VCO A
Power consumption: 230mA (+12V) / 55mA (-12V)
Width: 34 U
Depth: 36 mm
