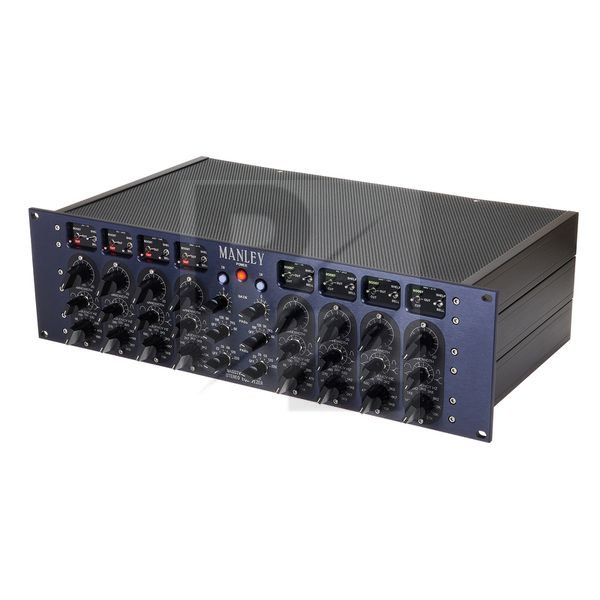

Manley Massive Passive

Technical Data

• Manufactured by Manley
• Released in 2004
• Average price : $6774
• 4 tapes per channel
• Circuit fully passive
• Overlapping frequency ranges
• Each band offers the possibility of Shelf or Bell
• Pro Band: Cut, Boost, and Off
• Tube Make-Up Gain
• Passive high-pass and low-pass filters
• Level +4 dBU (can be switched internally to -10)
• EQ Frequency control range: 22 to 27000 Hz
• EQ Boost / Cut Range: 20 dB Boost / 20 dB Cut
• Frequency range: +/- 2 dB: 8 - 60000 Hz
• Maximum output at 1.5% THD +37 dBv, +26 dBv at 20 Hz
• THD & noise (1KHz at +4 dBu): 0.06%
• Noise Floor (with respect to + 4dBu): -85 dB (A Weight)
• Dynamic Range: 120 dB
• Bypass switch
• Inputs and outputs as balanced XLR and 1/4 " jack
• Weight : approx. 9.5kg
