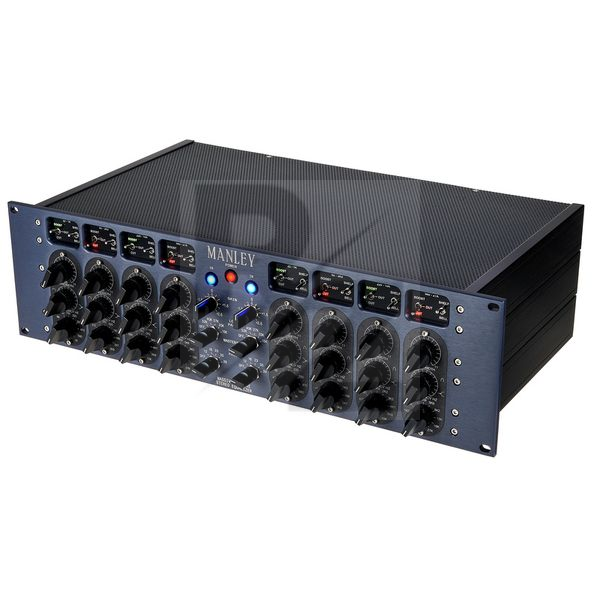

Manley Massive Passive Mastering
Stereo EQ
Latest User Reviews
2 years ago
You understand it only afert you use it.
Better than software, build very well. Makes a lot of good change on your master track. There is a lot to say about this EQ but to cut it short, this is expensive but the changes it makes are expensive too. There is also other EQs, the same price but this is something else.
Technical Data
- Manufactured by Manley
- Released in 2007
- Average price : $7994
- Mastering version with stepped potentiometers and changed filters for mastering applications
- 2-Channel EQ
- 4 Bands per channel
- Circuit completely passive
- Overlapping frequency ranges
- Each band offers the possibility of Shelf or Bell
- Each band: Cut, boost and off
- Tube make-up gain
- Passive high-pass and low-pass filter
- Level +4 dBU (can be switched to 10 internally)
- EQ frequency control range: 22 - 27000 Hz
- EQ Boost/cut range: 20 dB boost/20 dB cut
- Frequency range: +/- 2 dB: 8-60,000 Hz
- Maximum output at 1.5% THD dBv +37, +26 dBv at 20 Hz
- THD & Noise (1KHz at +4 dBu): 0.06%
- Noise floor (relative to +4 dBu): -85 DB (A Weight)
- Dynamic range: 120dB
- Bypass switch
- Inputs and outputs as balanced XLR and 6.3 mm TRS
- Weight : approx. 9.5kg
