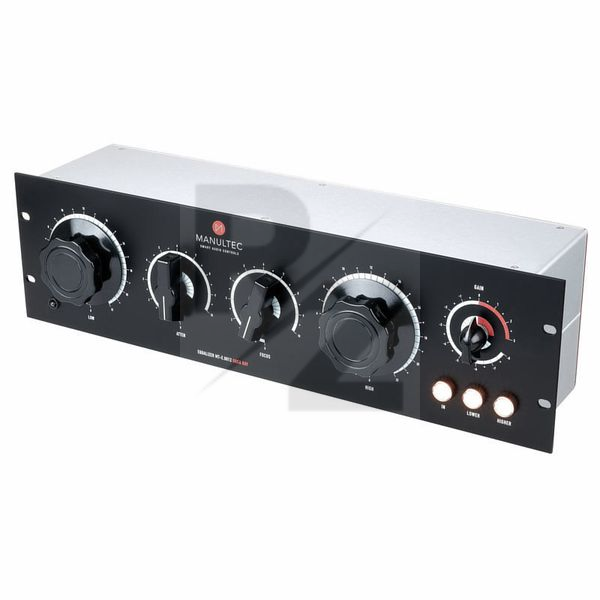

Manultec Orca Bay Stereo-EQ Black

Technical Data

• Manufactured by Manultec
• Released in 2021
• Average price : $5013
• Easy operation due to clear interface design
• Large Bakelite knobs for comfortable handling
• Subbass meter lights up for low-frequency sounds
• Hand-wound coils for high boost
• Make-up gain with discrete opamp in 1/2dB steps
• Input impedance: > 12 kO (balanced sound inputs with input transformer)
• Input/Output transformer
• Input level (maximum): +27 dBu (1% THD)
• Output level (maximum): +29.5 dBu (1% THD)
• Noise: -87 dBu (IEC-A, GAIN position @ +3 dB)
• Dynamic range: 114 dB (GAIN position @ +3 dB)
• Frequency response: 6 - 70000 Hz (0/-1 dB) / 20 - 20000 Hz (+/-0.2 dB);
• Consistent use of VOVOX sound conductors (purum certified)
• Dimensions : 483mm x 133mm x 147mm (19" / 3U)
• Weight : 4.2kg
