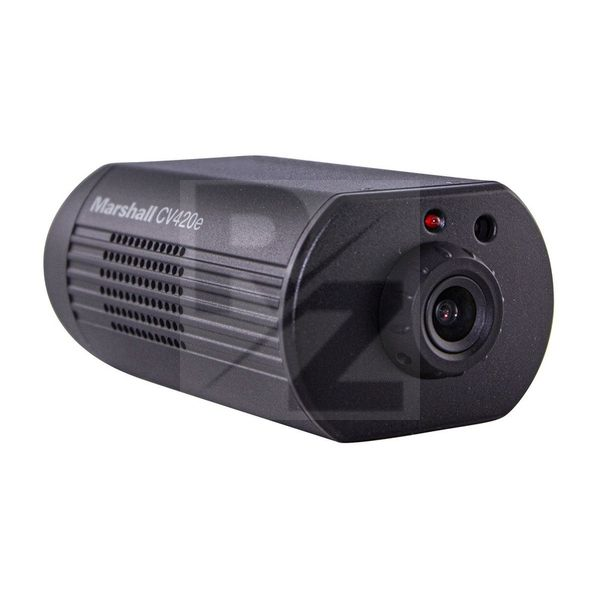

Marshall Electronics CV420e E-PTZ Camera

E-PTZ Camera

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Marshall Electronics
Released in 2023
Average price : $1340
Block camera with digital PTZ control
Zoom and free navigation on the horizontal and vertical axis make the CV420e similar to a PTZ camera
The built-in 4.5 mm lens captures a wide image area
The digital zoom allows dynamic recording in Full HD
In addition to the manual selection of the image section, up to 250 presets can be controlled.
Operation is possible via the web interface, external software such as OBS and vMix, as well as the IR remote control included in delivery
4K Sony sensor with 9.5 megapixels (1/1.8")
Fixed 4.5 mm lens
Horizontal angle of view: up to 100°
12x Digital zoom
Low light capable up to 0.05 lux
Min. Distance for precise focus: 30cm
Resolution and frame rates: 3840 x 2160p, 1920 x 1080p, 1920 x 1080p, 1280 x 720p (each up to 60 fps)
Connections: IP, HDMI, USB 3.0, 3.5mm audio input for IP and HDMI streams.
Simultaneous video output: USB + HDMI or IP + HDMI
Control: up to 250 presets, IR remote control, web interface, VISCA over IP, UVC, ONVIF, Crestron
Compatible with OBS, Plugins/Docks, VMS, vMix, Crestron
Audio input: 3.5 mm microphone and line level
Output: Ethernet / HDMI / USB
Dimensions: 113 x 70 x 51mm
Power supply: DC power supply (10 W power consumption), PoE (11W power consumption)
Included: Camera, combination stand for table and monitor (CVM-5), infrared remote control, power supply unit, 1.5 m power cable type EF - C5
