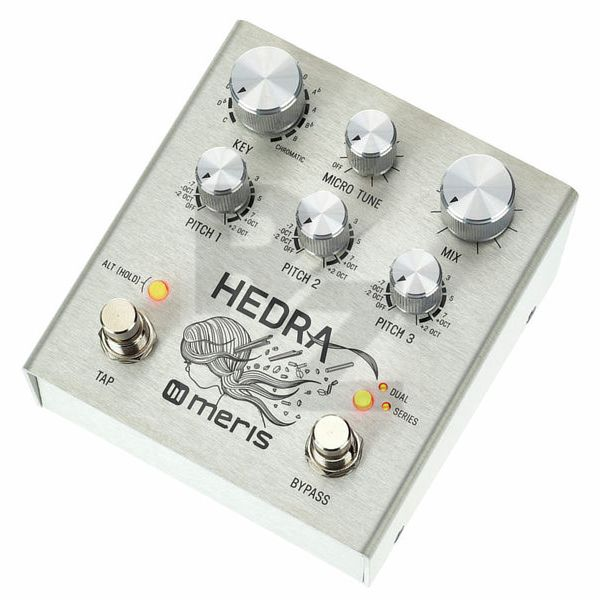

Meris Hedra Pitch-Shifter
Effect Pedal for Electric Guitar
Latest User Reviews
I really wanted to work this for me.
I really wanted to work this pedal for me. I love what it does. However, the operation is so frustrating and in addition, not precise, you are more or less guessing what scale and what intervals... it would be perhaps better if the dials were larger and maybe if the knobs clicked into various position... I find it not precise and more of a guesswork. Also the knobs are a bit flimsy and I worry they would not last very long... Other than that, I think it is an awesome pedal. But I will return it and opt for alternative, perhaps for POG or Micropog even though that will only give me octaves and sub octaves and no delay...
Awesome pedal! The midi implementation is fabulous. Pretty much total recall from within your daw.
Technical Data
- Manufactured by Meris
- Released in 2019
- Average price : $412
- Pitch shifter
- 3 Harmony voices / delay lines with rhythmic time offset
- Tap Tempo function and synchronisation
- 12 Diatonic harmonies and chromatic pitch shifting
- Up to 16 presets via MIDI
- 24 Bit AD / DA with 32 bit floating point DSP
- Switchable headroom for guitar/line input level
- Tap Tempo functionality with separate temp increases for each voice
- Expression control possible for all effect parameters (also simultaneous)
- MIDI in / out / preset selection / external tap tempo available via EXP socket
- Analogue signal path for wet / dry mix
- Presets via external 4-preset switch (Meris Preset Switch, not included) or MIDI selectable
- Selectable bypass (True / Relay Bypass or Buffered)
- Key, Micro Tune, Mix, Pitch 1, Pitch 2, and Pitch 3 knobs
- Alt (Hold) button for activating alternative controller functions
- Mode Button for selecting the delay line arrangement (Dual / Dual + Series / Series / Pitch Feedback)
- Bypass footswitch
- Tap footswitch
- Status LEDs
- Metal housing
- 6.3 mm TRS input jack (switchable stereo / mono)
- 2x 6.3 mm mono latches (L / R) outputs
- 6.3 mm TRS Exp / Tap Tempo / External Footswitch / MIDI Jack
- Power supply via 9 V DC power supply unit with 2.1 x 5.5 mm barrel connector and polarity (-) inside (Power adapter not included)
- Current consumption: 150 mA
- Dimensions : 107mm x 115mm x 67mm
- Weight : 410g
- Made in USA
