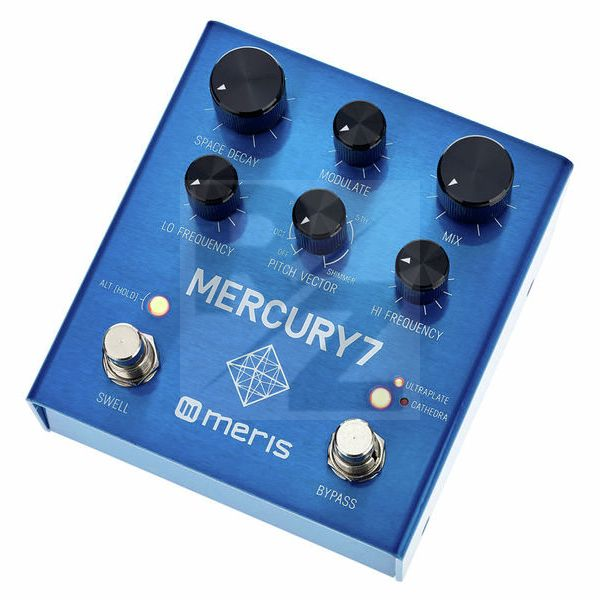

Meris Mercury 7 Reverb Pedal

Technical Data

• Manufactured by Meris
• Released in 2017
• Average price : $396
• Reverb
• Pedal version of the Meris 500 Series Mercury7
• 2 Reverb algorithms
• Separate controls for interaction of high and low frequencies with the reverb algorithm
• Up to 16 presets via MIDI
• 24 Bit AD/DA with 32 bit floating point DSP
• Selectable bypass (True/Relay Bypass or Buffered)
• Selectable Reverb Trails
• Switchable headroom for guitar/line level input level
• Auto Swell Envelope function
• Analogue signal path
• MIDI in/out/preset selection/external tap tempo available via EXP socket
• Analogue wet/dry mix
• Presets via external 4-preset switch or MIDI selectable
• Space Decay, Modulate, Mix, Lo Frequency, Pitch Vector and Hi Frequency controls
• Alt (Hold) button for activating alternative controller functions
• Algorithm Select button to select the reverb algorithm (Ultraplate/Cathedra)
• Bypass footswitch
• Swell footswitch
• Status LEDs
• Metal housing
• 6.3 mm TRS input jack (switchable stereo/mono)
• 2x 6.3 mm mono jack (L/R) outputs
• 6.3 mm TRS Exp/Tap Tempo/External Footswitch/MIDI jack
• Power supply via 9 V DC power adapter with 2.1 mm x 5.5 mm barrel connector, polarity (-) inside (power adapter not included)
• Current consumption: 150 mA
• Dimensions (L x W x H): 115 x 107 x 67 mm
• Weight : 410g
• Made in USA
