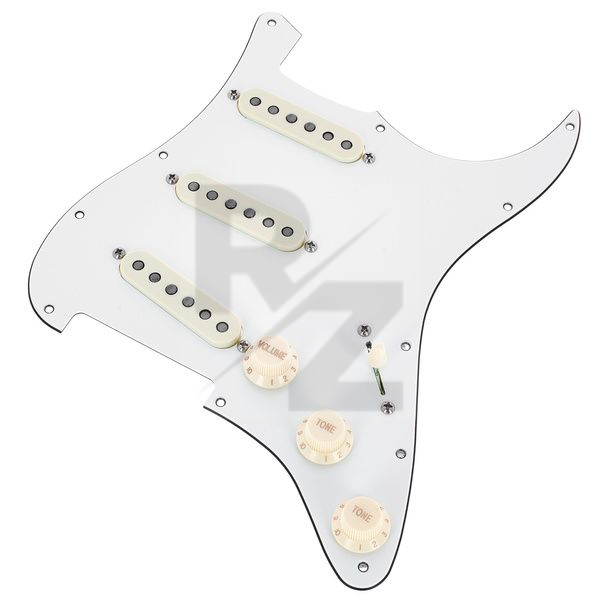

Mojotone 67 Q.Coil Hot Br. Pickguard WH

Pre-Wired Pickguard for Electric Guitar

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Mojotone
Average price : $340
Pickups: 3 Noiseless single coils
Suitable For ST-style models
Pickguard model: SSS
Standard 11-hole
Pickguard colour: white 3-ply
Output: Vintage & High
Positions: Bridge, middle and neck
DC resistance (bridge): 11.6 kOhm
DC resistance (middle): 5.6 kOhm
DC resistance (neck): 5.6 kOhm
Magnet material: Alnico 5
Cover colour: Aged White
No soldering required, simply insert and play
Hum-cancelling Strat pickups that look and sound like real single coils
With minimal components and in keeping with the actual vintage single coil characteristics
Matched resonant frequency and inductance allow them to match the frequency response and feel of traditional single coils without having to compensate
The hot wired pickup at the bridge provides more bass and midrange and also provides a better balance between the positions and better sustain
Controls: 1x volume, 1x tone (bridge pickup), 1x tone (middle & neck pickup)
Switch: 5-Way
Switch positions: 1: bridge, 2: bridge & middle, 3: middle, 4: middle and neck, 5: neck
Made in USA
Pickguard
Pickups
3x CTS 500k custom split-shaft potentiometer (9.5 mm thread length)
CRL 5-Way switch
Switchcraft mono input jack
Vitamin-T Oil Filled .047uf capacitor
Pre-tinned, fabric-covered wire
Volume mod (Treble Bleed)
