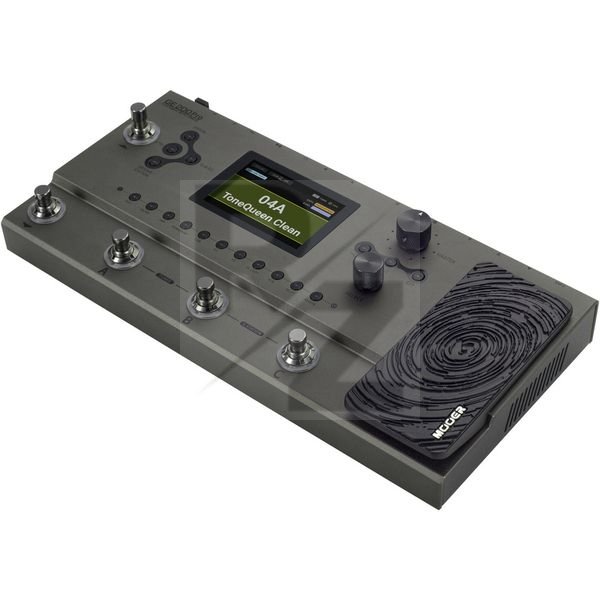

Mooer GE200 PRO

Technical Data

• Manufactured by Mooer
• A total of 286 advanced effect modules and amp models
• Supports downloads of MNRS amplifier simulation sample data to a total of 20 free memory locations
• Supports downloads of IR speaker simulation files from third-party providers with a sample size of 2048 points to a total of 20 free memory locations
• Special computer editor software and mobile app for preset management and sample file downloads
• MIDI compatibility
• Large 3.5’ LCD colour screen with intuitive user interface
• Drum machine with 70 drum patterns
• Phrase looper with 60 seconds recording time
• Overdubbing function and independent volume control
• Effect signal chain fully adjustable and changeable
• Adjustable global EQ settings for easy integration into any setup
• Up to 255 storable presets
• Stereo outputs and switchable parallel/serial FX loop for adding external pedals to the effects chain
• Supports audio playback from mobile devices via Bluetooth
• Programmable MIDI connections for MIDI IN or MIDI OUT for controlling external devices
• Low-latency ASIO USB audio interface (USB Type-C) with up to 44.1 kHz sample rate
• Up and down footswitch for selecting the memory banks
• Multifunctional A, B, C footswitches
• Built-in volume / expression pedal
• Controls for Master, Select, Home, Save, Exp pushbuttons, Effect Block LED pushbuttons, System, GLB-EQ, Groove Station, CTRL pushbuttons
• Aluminium housing
• Ground / lift switch
• Power supply via included 9V DC power supply unit 2,1 mm x 5,5 mm barrel connector, centre negative
• Power consumption: 1000 mA
• Dimensions (L x W x H) 324 x 162 x 58 mm
• Weight : 1.6kg
• Colour: Grey
• Includes USB cable
• 6.3 mm mono jack input
• 2 x 6.3 mm mono jack outputs (L / R)
• 2 x Balanced XLR (L / R) outputs
• 6.3 mm Stereo jack input for external control
• 6.3 mm Mono jack send
• 6.3 mm Mono jack return
• 5-Pin MIDI In and Out
• 3.5 mm Jack stereo headphone output
• USB Type-C port
