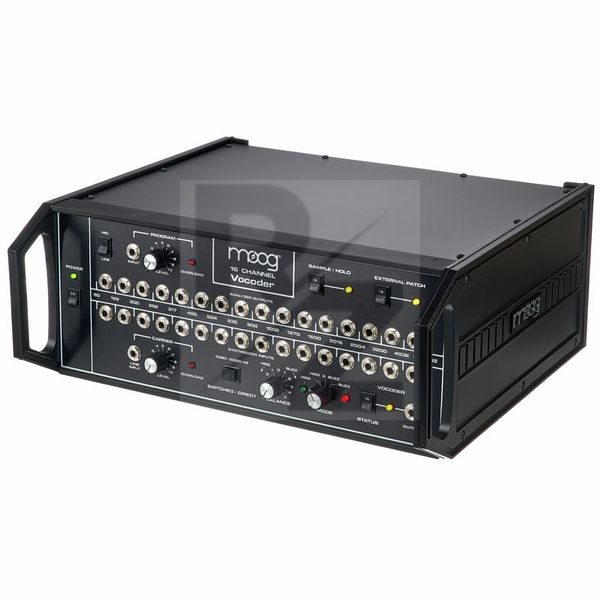

Moog Vocoder

16-Channel Vocoder

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Moog
Released in 2020
Average price : $6504
16 Patchable bands in the range from 50 to 5,080 Hz
Selectable Direct mode routes an additional high-frequency channel above 5,080 Hz to the vocoder output
Sample/hold switch to hold the tonal characteristics of a sound (controllable by footswitch)
Patch function to connect external devices to the vocoder or for cross-patches
Hiss & buzz control
1 x Carrier line input
1 x Program Line input
16 x Filter Band CV inputs
16 x Filter Band CV outputs
1 x Line output
3 Footswitch inputs: Sample & Hold, Patch Select, Bypass
Dimensions : 44mm x 17.78mm x 41.43 cm
Weight : 7.94kg
Includes external power supply
