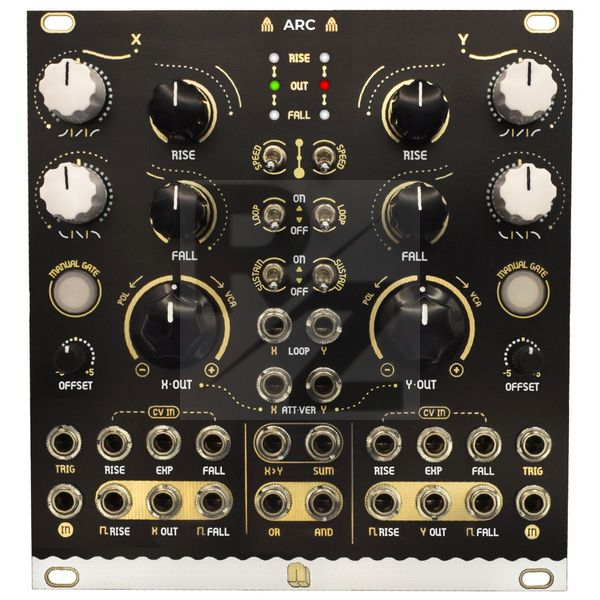

NANO Modules ARC

Eurorack Module

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by NANO Modules
Analogue dual function generator and modulator
Each channel can function as an envelope generator (AD or ASR), LFO or VCO with variably adjustable waveform, voltage-controlled slew limiter and more
Rise and fall time adjustable per channel (selectable time range: 0.5 ms - 7 min)
Freely adjustable curve for rise and fall segment (exponential via linear to logarithmic)
Adjustable offset (-5 V to +5 V) and attenuator/polariser with CV input per channel
Loop mode with gate input
Per channel: signal input, trigger input, CV inputs for rise & fall, exponential CV input, signal output and gate outputs for rise and fall phase
Logic outputs for OR, AND, Sum and X>Y
LED status indicators
Power requirement: 150 mA (+12 V) / 130 mA (-12 V)
Width: 24 HP
Depth: 40 mm
