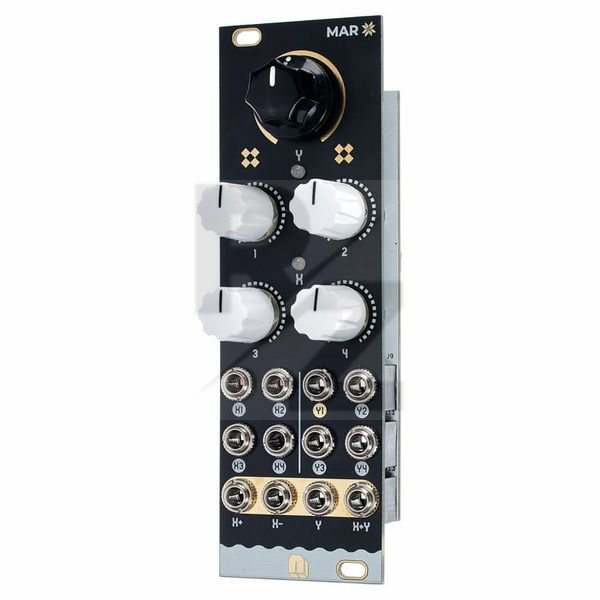

NANO Modules MAR
Eurorack Module
Latest User Reviews
Versatile mixer in a small package
I have this module for close to a year now and it's probably been the centerpiece of most of my patches ever since. The MAR is such a versatile beast and can take on a lot of different roles depending on how you patch it.
Depending on how you patch it you can have one big mixer with 7 inputs or two mixers with four inputs. There's some extra nice utilities to invert or sum the outputs, which make it a blast to use with modulation too. Heck, you could even split the mixers and use one for modulation and the other one for audio signals. Or patch it up do send / return chains. Maybe self patch to get some complex modulation from a single LFO. It's a workhorse.
The build quality is solid, the frontpanel looks cool and the circuit sounds great and it's only 8HP wide.
Great price for the feature set.
Technical Data
- Manufactured by NANO Modules
- Released in 2019
- Average price : $130
- Analogue dual mixer
- MAR offers 2 independent mixers in one module
- Mixer X with 4 inputs and volume control per channel
- Normal (X+) and inverted output (X-) available
- Mixer Y sums up 4 inputs to a common sum knob
- Outputs for Y and X+Y available
- Output of Mixer X can be normalised to Mixer Y
- Processes audio, CV, trigger and gate signals
- Noise-free audio quality with high headroom
- All controllers with logarithmic characteristic curve
- Power requirements: +20 mA (+12 V) / -20 mA (-12 V)
- Width: 8 HP
- Depth: 20 mm
