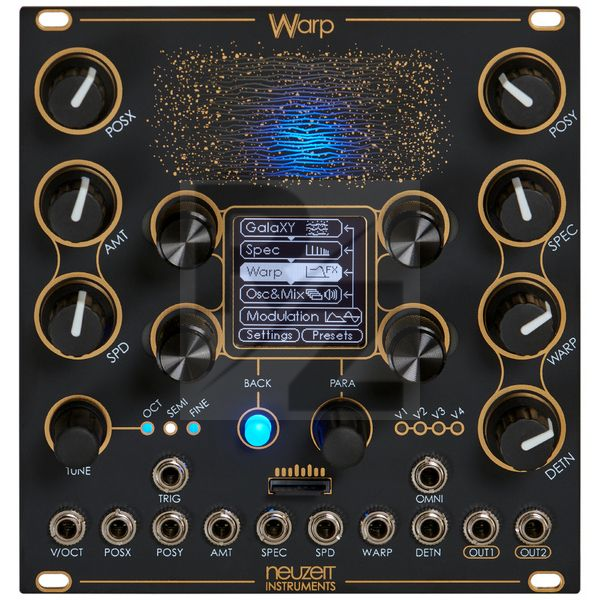

Neuzeit Instruments Warp

Eurorack Module

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Neuzeit Instruments
Average price : $755
Polyphonic synthesizer voice
Hybrid concept of additive synthesis and wavetables
Modulable XY matrix with overtone spectra and spectral filter
Two oscillators with coarse and fine tuning, linear detune, sync, AM, FM, phase distortion and filtered noise
Lowpass and highpass filters (12dB/24dB selectable) with resonance
Internal modulation matrix
Modulation sources: x2 ADSR envelope, x2 LFO with numerous waveforms, MIDI-CC, MIDI-Velocity, MIDI-Aftertouch, Omni CV input
7 Macro control knobs (each with CV input) to access main parameters
Comfortable editing via 5 rotary encoders and display
Two audio outputs (24bits / 48kHz)
Micro SD card for importing wavetables as well as saving and loading of presets
Power consumption: 225mA (+12V) / 25mA (-12V)
Width: 24 U
Depth: 30 mm
