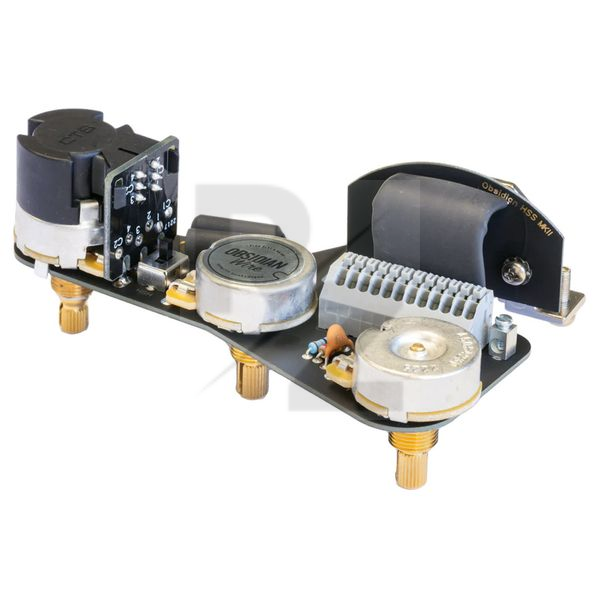

ObsidianWire ST 7-Way ST HSS/HSH Harness
Solderless Electronics Replacement Set for Electric Guitar
Latest User Reviews
Obsidianwire are my "go to" solderless harnesses
I started using exlusively Obsidianwire harnesses since 2020 (two traditional strat harnesses, one with Blender, and two HSS). I bought this to replace one of my old HSS harnesses, I was only interested in the HSH mode (there is a HSS/HSH on the PCB) switch but I also wanted to have the extra pup combinations available so I opted for the 7 way switch. Qualitywise, Obsidianwire is top notch. End of story. This one can also do (via the Push/Pull on Tone 2) Bridge+Neck and Bridge+Middle+Neck. If you are not like me, always operating my pups on full humbucker mode, this harness can autosplit (just use all four cables of your humbuckers instead of two). My strats are Fender Japan (CIJ and MIJ) and these harnesses fit just fine. The same goes for the MIA strats. So, if you are sick and tired about soldering, just find the proper Obsidianwire that meets your requirement, install it, and forget all about it. Works great for guys and gals that are experimentng with different pickups all the time.
Technical Data
- Manufactured by ObsidianWire
- Average price : $160
- For ST-style electric guitar with HSS or HSH pickup configuration
- Play the neck and bridge pickup or even all three pickups together
- Function switch in the push/pull tone control, no additional modifications required
- Intelligent circuit: 500 kOhm for humbucker & 250 kOhm for single coil
- Internally switchable between an HSS and HSH pickup configuration
- High-quality components provide a significant improvement over standard electronics
- Solderless plug-in wire connector for quick installation and easy pickup changing
- Controls: volume, tone (neck & centre), P/P tone (bridge & 5-way switch function)
- Made in New Zealand
- HSS P/P Switch Down: 1: Bridge, 2: Bridge (Split) & Middle, 3: Middle, 4: Neck & Middle, 5: Neck
- HSS P/P Switch Up: 1: Bridge & Neck, 2: Bridge (Split), Middle & Neck, 3: Middle & Neck, 4: Neck & Middle, 5: Neck
- HSH P/P Switch Down: 1: Bridge, 2: Bridge (Split) & Middle, 3: Middle, 4: Neck (Split) & Middle, 5: Neck
- HSH P/P Switch Up: 1: Bridge, 2: Bridge (Split), Middle & Neck, 3: Middle & Neck, 4: Middle & Neck (Split), 5: Neck
- Volume control: 1 CTS 250 kOhm, short shaft, finely ribbed slotted shaft (24 spline for US guitars & pot knobs)
- Tone control: 2 CTS 250 kOhm, short shaft, finely ribbed slotted axle (24 spline for US guitars & pot knobs), 1 push/pull
- Capacitors: 150 Series Polyester Film 0.022µF
- Switch: Oak Grigsby 5-way blade switch
- Jack socket: Switchcraft
