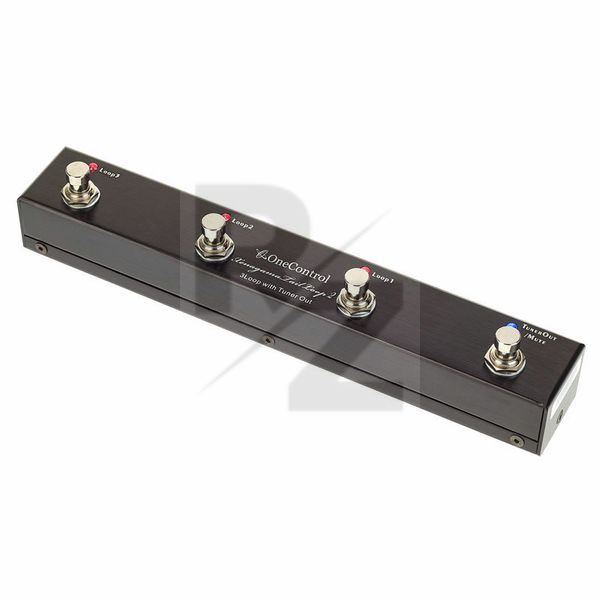

One Control 3-Channel Loop Switcher

Technical Data

• Manufactured by One Control
• Released in 2020
• Average price : $151
• 3-Channel true bypass loop switcher for effects pedals
• The footswitches provide control over three independent loops and a separate tuner output
• 4 DC barrel connector outputs (2.1 x 5.5 mm) for looping through the power supply
• True bypass
• 4 Foot switches (Loop 1, Loop 2, Loop 3, Tuner Out / Mute)
• Status LEDs
• 6.3 mm mono jack inputs / outputs
• Power supply via optional 9V DC power supply (2.1 x 5.5 mm barrel connector, polarity (-) inside - not included)
• Passive operation without power supply possible (status LEDs and DC barrel connector outputs then without function)
• Power consumption max. 5 mA
• Metal housing
• Dimensions (L x W x H): 41 x 244 x 46 mm
• Weight : 320g
