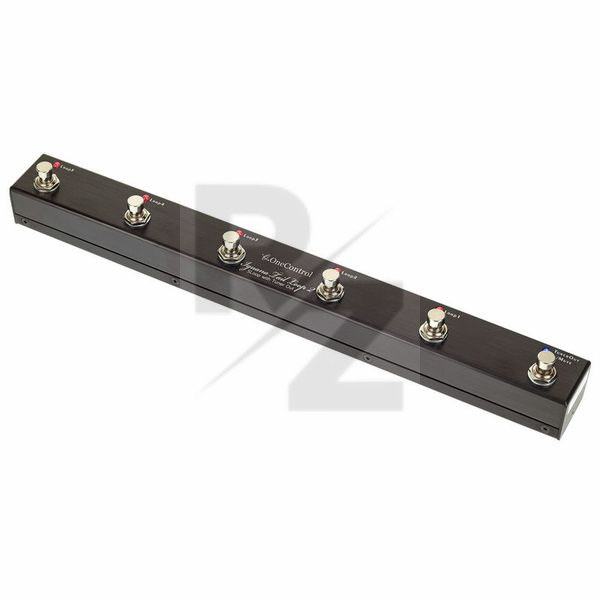

One Control 5-Channel Loop Switcher
Loop Switcher for Effects Pedals

Latest User Reviews
Excellent.
Lots to like, only 1 point of contension do not like the input and output location.
Best Smaller Loop Switcher Available
I use this daily and it never lets me down.
The price is spot on.
If this had midi, it would be even usefuller...
Very Good & Simple
Slim & Pedal board friendly , simple to use and does the job.
Very recommended for the people that doesn’t use midi and sophisticated rigs.
Good value, simple loop switcher.
I wanted a simple, non-programmable switcher for the pedals I place before my amp (od, dist, comp, vibe/phase, fuzz). This keeps the signal chain as short as possible compared to having all of these linked in series. It has improved signal to noise, so much less hiss and no discernable sisnal loss.
Another upside is the switching is all close together and I don't have to reach all over the pedalboard (the largest HB spaceship). This also saves the effects footswitches from wear.
The mute switch is a really handy feature and the unit is very compact and very well made. The only "improvement' I could think of would be soft touch switches, (as used in gigrig switchers) but these would certainly add to the price.
Technical Data
- Manufactured by One Control
- Released in 2020
- Average price : $191
- 5-Channel true bypass loop switcher for effects pedals
- The footswitches provide control over five independent loops and a separate tuner output
- 6 DC barrel connector outputs (2.1 x 5.5 mm) for looping through the power supply
- True bypass
- 6 Foot switches (Loop 1, Loop 2, Loop 3, Loop 4, Loop 5, Tuner Out / Mute)
- Status LEDs
- 6.3 mm Mono jack inputs / outputs
- Power supply via optional 9V DC power supply (2.1 x 5.5 mm barrel connector, polarity (-) inside) - not included)
- Passive operation without power supply possible (status LEDs and DC barrel connector outputs then without function)
- Power consumption max. 15 mA
- Metal housing
- Dimensions (L x W x H): 45 x 365 x 50 mm
- Weight : 460g
