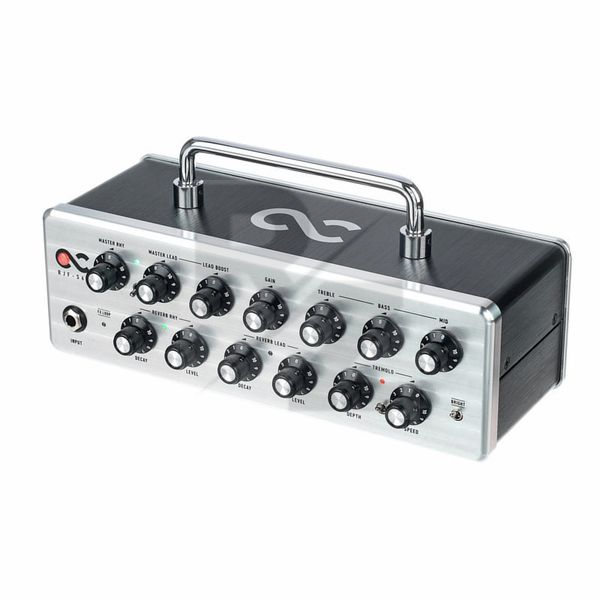

One Control BJF-S66 Amp Head/Footswitch

Technical Data

• Manufactured by One Control
• Released in 2020
• Average price : $600
• Compact and lightweight construction
• 2 Switchable channels: Rhythm / Lead
• Transistor circuit
• Class D power amplifier
• Power: 100 W into 4 Ohm / 66 W into 8 Ohm / 30 W into 16 Ohm
• 3-Band EQ (Bass: +/- 20 dB at 70 Hz, Mid: +/- 10 dB at 450 Hz, Treble: +/- 20 dB at 2 kHz)
• Switchable bright setting offers +10 dB boost at 4 kHz
• Separate reverb section with adjustable level and decay for each channel
• Integrated tremolo section, combined for both channels
• FX Loop (On/Off), Channel Select and Tremolo (On/Off) can be controlled via optional Latching footswitch (not included) or One Control FS-P 3 footswitch
• Front panel controls for Master Rhythm, Master Lead, Lead Boost, Gain, Treble, Bass, Mid, 2x Reverb Decay, 2x Reverb Level, Tremolo Depth, Tremolo Speed
• Front panel switches for Channel (Rhythm / Lead), Tremolo (On/Off), Bright Boost (On/Off)
• Instrument input: 6.35 mm mono jack
• Power On / Off switch on rear
• Rear connections for DC In, Tremolo Footswitch, Channel Footswitch, FX Loop Footswitch, Speaker Out, Pre-Amp Out, FX Loop Send, FX Loop Return (6.35 mm mono jack) and One Control FS-P3 (RJ12)
• Input voltage 24V DC (power supply included)
• Dimensions BJF-S66 (W x D x H): 26.5 x 9.5 x 10.3 cm
• Dimensions FS-P3 (W x D x H): 18 x 5 x 4.2 cm
• Weight BJF-S66: 1.62 kg
• Weight FS-P3: 0.58 kg
• Includes FS-P3 footswitch
