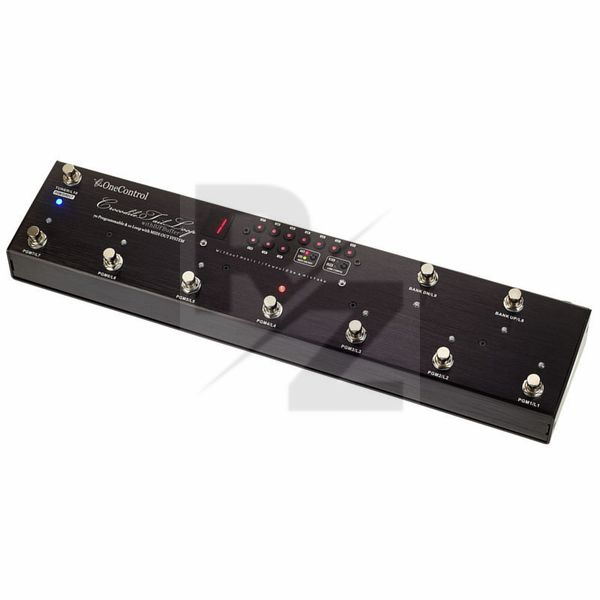

One Control Crocodile Tail Loop (OC10)

Loop Switcher for Effects Pedals

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by One Control
Released in 2020
Average price : $809
Programmable 10-channel true bypass loop switcher for effects pedals
Foot switches provide control over 10 independent loops and a separate tuner output
Extremely simple and intuitive programming
Link function offers the possibility of connecting two OC10s in two selectable modes (sync, download)
70 Freely configurable presets (10 banks, 7 presets per bank)
2 Selectable switching modes (Program Mode, Direct Mode)
Integrated BJF buffer circuit with separate inputs and outputs
7 Serial loops and 3 separate loops
Separate loops can be used as amp footswitches (NO / NC)
Fully MIDI-capable with MIDI Out and MIDI In / Thru
True bypass
10 Foot switches: PGM1 / L1, PGM2 / L2, PGM3 / L3, PGM4 / L4, PGM5 / L5, PGM6 / L6, PGM7 / L7, Bank Up / L8, Bank Dn / L9, Tuner / L10)
Link Config switch
MIDI on / off switch
10 Push buttons for programming the presets
Status LEDs
6.3 mm Mono jack inputs / outputs
5-Pin MIDI input / output
Power supply via 9V DC power supply with 2.1 x 5.5 mm barrel connector, polarity (-) inside (power supply not included)
Current consumption: max. 450 mA
Metal housing
Dimensions (L x W x H): 110 x 462 x 64 mm
Weight : 1800g
