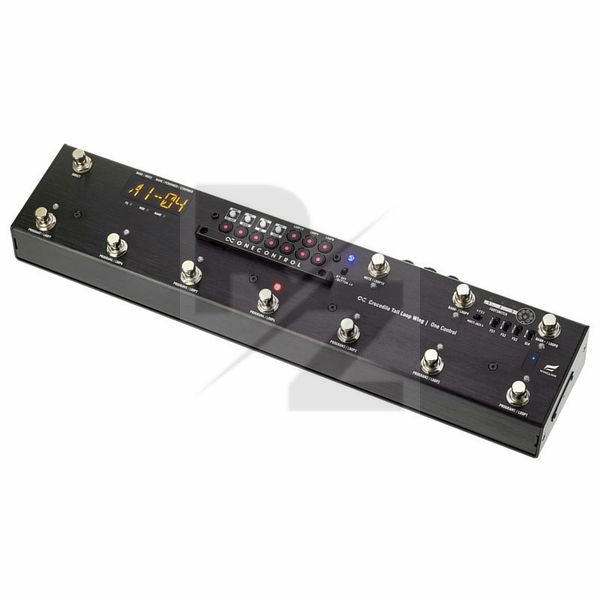

One Control Crocodile Tail Loop Wing OC10W

Programmable 10-channel true bypass loop switcher for effects pedals.

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by One Control
Released in 2021
Average price : $774
Footswitches provide control over 10 independent loops and a separate tuner output
Extremely simple and intuitive programming
Winglink iOS app for programming and remote control
168 Freely configurable presets - 24 banks, 7 presets per bank
2 Selectable switching modes: Program Mode, Direct Mode
Integrated BJF buffer circuit with separate inputs and outputs
7 Serial loops and 3 separate loops
3 Separate footswitch connections and an 8-pin DIN connector can be used as an amp footswitch
Fully MIDI-capable with MIDI Out and MIDI In
True Bypass
11 Footswitches: PGM1/L1, PGM2/L2, PGM3/L3, PGM4/L4, PGM5/L5, PGM6/L6, PGM7/L7, Bank Up/L8, Bank Dn/L9, Mute/L10, Direct
10 Keyswitches for programming the presets
5 Switches control the footswitch connections
4 Multi-function footswitches
Bluetooth on/off switch
Status LEDs
Metal housing
6.3 mm Mono jack inputs / outputs
5-Pin MIDI input / output
Power supply via 9V DC power supply unit with 2.1 x 5.5 mm barrel connector, polarity (-) inside (not included in delivery)
Power consumption: max. 400 mA
Dimensions (L x W x H): 100 x 440 x 64 mm
Weight : 1.34kg
