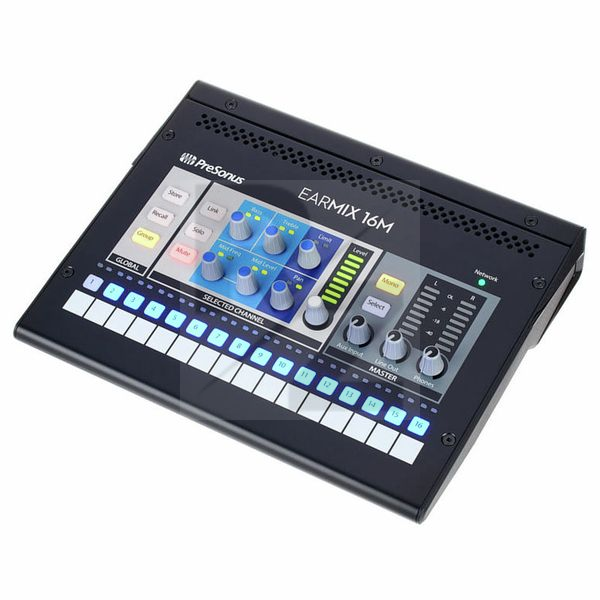

Presonus EarMix 16M

Technical Data

• Manufactured by Presonus
• Released in 2018
• Average price : $413
• 16/2 AVB mixer via AVB
• For StudioLive Series III mixers
• 3-Band EQ with parametric mids for each channel plus the sum
• Adjustable limiter for each channel plus the sum
• Channel level controller with 8-segment LED display
• Stereo link and channel group switchable
• 16 Memory locations for mixer scenes
• Store and Recall buttons
• AUX input (stereo jack, 3.5 mm) with volume control
• Headphone jack (stereo jack, 6.35 mm) with volume control
• Powerful headphone amplifier for loud and undistorted playback
• Balanced stereo line output (2x TRS-jack 6.35 mm) with volume control
• 2x 8-Segment LED display in the sum (L / R)
• 2 AVB Ethernet ports (RJ45)
• Connect to mixer via a CAT5e or CAT6 cable
• Multiple EarMix 16Ms can be cascaded or operated in an AVB network (up to 24)
• Compatible with other AVB-capable devices (in accordance with IEEE 1722)
• Power supply: External power adapter (included) or via PoE
