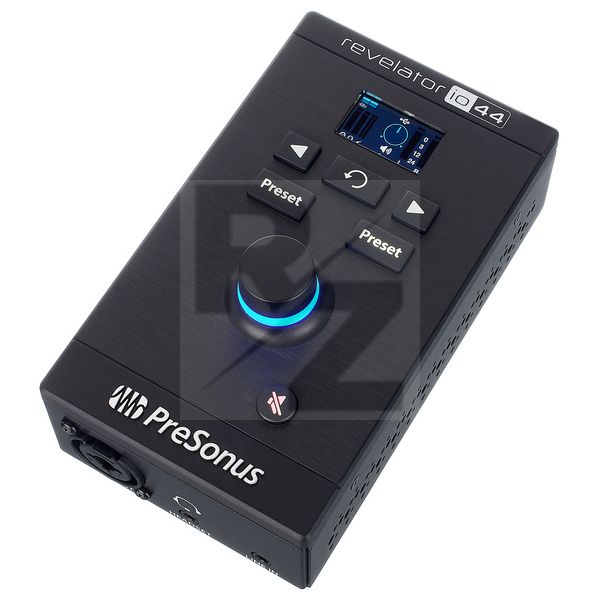

Presonus Revelator io44

USB 2.0 Audio Interface

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Presonus
Released in 2022
Average price : $173
Connection: USB C
With an integrated loopback mixer, effects and stream mix mode for streaming, podcasting, recording etc.
Bus-powered
Resolution: 24-bit/44.1 - 96 kHz
Two stereo loopback channels for audio mixing from multiple applications as backing tracks, as well as recording Skype or Zoom calls, gaming audio and more
XMAX-L microphone preamplifier
Max. gain: 60 dB
Frequency range: 20 - 20,000 Hz
Switchable phantom power: +48V
Integrated DSP for signal processing
StudioLive fat channel with a high-pass filter, gate, 3 compressors, 3 EQs and limiter
StudioLive speech effects with a doubler, vocoder, ring modulator, comb filter, detuner, delay and reverb
With factory presets
Stream mix mode for mixing input signals, effects, loopback channels, etc.
LED level meter
1 Combo input Mic/Line/Inst: XLR/jack
1 Stereo line input: 3.5 mm TRS jack
1 Stereo headset connection (mic input, stereo output): 3.5 mm TRRS jack
2 Line outputs: 6.3 mm jack
Latency-free monitoring
Remote control via UC Surface software mixer for iPadOS, Windows and Android
Incl. 1 m USB cable type C to type A, Presonus Studio One Artist and Studio Magic Suite software (download)
Dimensions : 58mm x 77mm x 13.6mm
Weight : approx. 0.35kg
