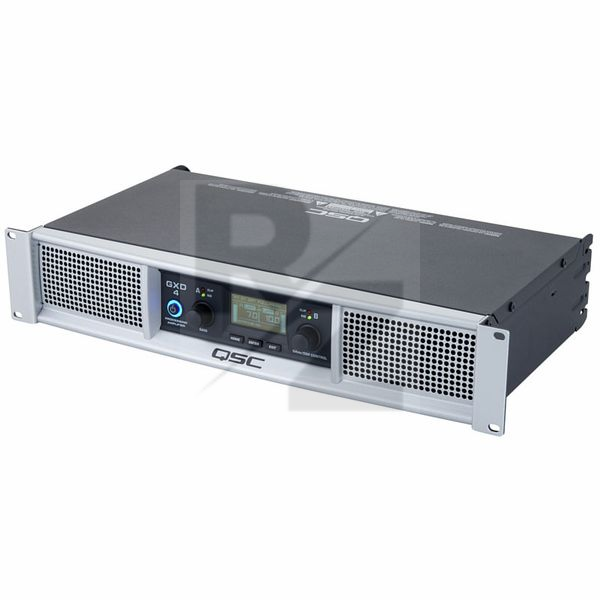

QSC GXD 4
Power Amplifier
Latest User Reviews
Typical QSC Quality
Paired with the EV90 8" Speakers, this amplifier sounds fantastic.
We've used it as part of a large school auditorium space which hosts a range of events from musicals to parties.
The amplifier enables us to set limiters to match the speakers performance and lock the system out for better protection!
The onboard DSP is very user friendly with some very useful features such as delay and phase - something i wasn't expecting at this pricepoint.
Well worth the money! :)
excellent
very convenient settings. very convenient and informative menu. perfect solution with a screen. good sound quality. very light. The perfect solution for most speakers. very lack of bridge mode!
Technical Data
- Manufactured by QSC
- Released in 2015
- Average price : $718
- Very low installation depth: 259 mm
- Power: 2x 600 W into 4 Ohm, 2x 400 W into 8 Ohm
- Hi-Peak power: up to 1,600 W
- Class-D power amplifier circuit
- Large, illuminated 256p x 128p LC display
- 2 Rotary input knobs and 3 buttons for quick access
- High-pass filter, 4th order Linkwitz-Riley, adjustable frequencies 20 Hz to 4 kHz
- Low-pass filter, 4th order Linkwitz-Riley, adjustable frequencies 60 Hz to 4 kHz
- 4-Band parametric EQ with frequencies
- Gain and bandwidth variable
- Peak Limiter: protects speakers by entering individual power and impedance data
- Delay: maximum 50 ms
- Digital gain: +10 dB / -100 dB
- 20 Presets for the most frequently used loudspeaker configurations, adjustable
- Status LEDs: 2x green: signal/2x red: in-amp clip/1 xblue: mains power
- Inputs: 2x XLR and 2x 6.35 mm stereo jack
- Outputs: 2x NL4, lockable (NL2 compatible) and 2x screw terminals
- Mono or bi-amping connection
- Protection circuits and thermal fuses
- Power supply fused in case of unstable power supply
- Detachable mains cable (C13/grounded plug)
- Dimensions : 483mm x 89mm x 259mm
- Construction: 19" / 2 U
- Weight : 5.1kg
