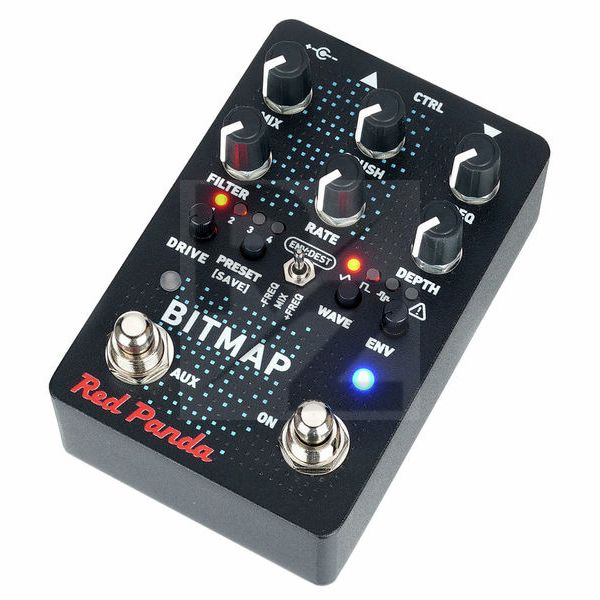

Red Panda Bitmap V2

Technical Data

• Manufactured by Red Panda
• Released in 2021
• Average price : $472
• Bitcrusher / Digital Distortion
• Fractional Bit Reduction from 24-bit to 1-bit
• Sampling rate reduction from 48 kHz to 110 Hz
• Sample rate modulation with selectable waveforms (triangle, sine, random)
• Adjustable wave folding and wave shaping functions
• Adjustable wet/dry mix maintains bass content in the signal or adds effect discreetly to the sound
• Adjustable input level (drive) adapts the pedal to single coil or humbucker pickups as well as line level signal
• 4-Pole low-pass filter
• Soft touch bypass switch (momentary or latching)
• Aux footswitch can be assigned to tap tempo or preset selection
• Additional parameters controllable via MIDI (USB or TRS)
• MIDI clock synchronisation
• Presets (4 via pedal, 127 via MIDI)
• Analogue buffered bypass
• Controls for Mix, Crush, Freq, Filter, Rate, Depth, Drive, Env
• Preset switch
• Wave switch
• Bypass footswitch
• Aux footswitch
• Status LEDs
• 6.3 mm Stereo jack input / output (TRS)
• 6.3 mm Stereo input (TRS) for expression pedal / remote switch / remote tap / MIDI connection (freely assignable)
• USB input
• Power supply via 9 V DC mains adapter (2.1 mm x 5.5 mm barrel connector, polarity (-) inside, not included)
• Power consumption: 250 mA
• Metal housing
• Dimensions (L x W x H): 120.6 x 77.5 x 63.5 mm
