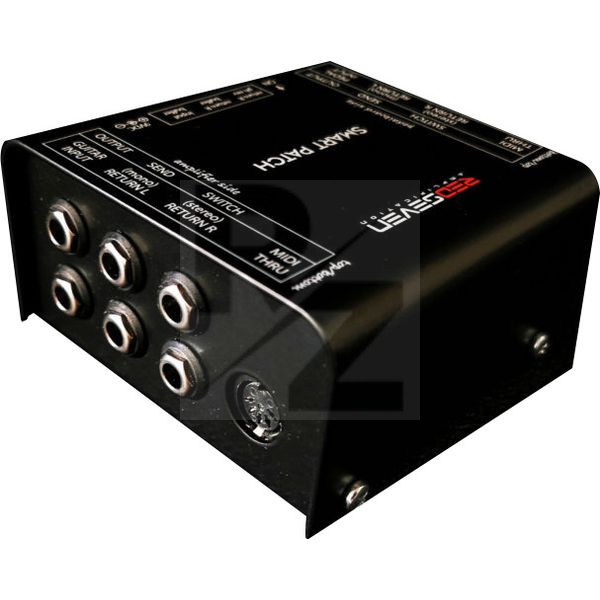

RedSeven Smart Patch Hub

Pedalboard Patch Hub

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by RedSeven
Average price : $198
Suitable for both studio and live environments
Central interface for all audio connections to and from a pedalboard
Auto-routing functions
Dual input and output with Higrade buffers, specially designed to avoid possible signal loss
Both buffers can be bypassed
High-end ISO transformer in the stereo output to avoid ground loops
Phase reversal switch for the stereo output to quickly and conveniently rotate the signal by 180° if required
TRS Thru for channel switching or additional signal path
Low-noise operation
Switches: Input buffer bypass, R return buffer bypass, R return phase reverse
True Bypass
Dimensions: (W x D x H): 120 x 100 x 65 mm
Weight : 500g
Handmade in Italy
Guitar input: 6.3 mm jack
Output: 6.3 mm jack
Send: 6.3 mm jack
Return: 2x 6.3 mm jack
Switch: 6.3 mm stereo jack
MIDI Thru: 5-pin DIN
Pedal input: 6.3 mm jack
Output: 6.3 mm jack
Send: 6.3 mm jack
Return: 2x 6.3 mm jack
Switch: 6.3 mm stereo jack
MIDI Thru: 5-pin DIN
Power supply connection: Barrel connector 5.5 x 2.1 mm, centre negative, power consumption: 100 mA
Power supply with a 9 V DC mains adapter (not included)
