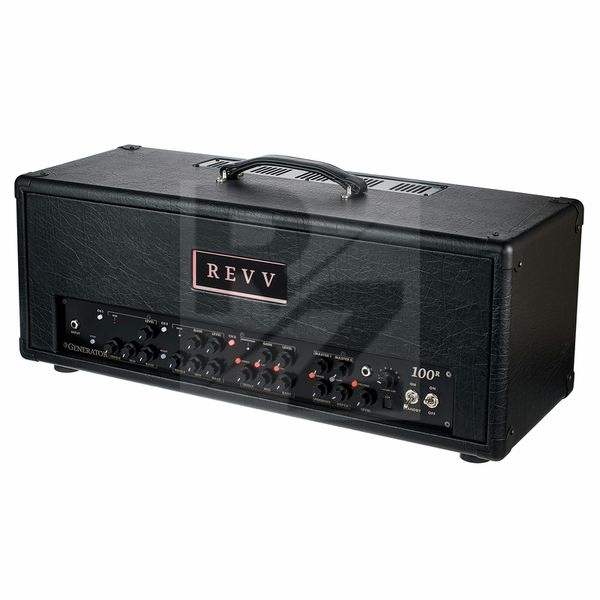

Revv Generator 100R MK3

Technical Data

• Manufactured by Revv
• Released in 2021
• Average price : $3291
• New MK3 version with integrated two-notes torpedo reactive load and virtual cabinets with stereo XLR output, which deliver perfect direct sound for stage, studio and home applications
• 3 channels
• Power: 120 watts - power levels from 120 W down to 10 W.
• Optimised red channel
• New Clean & Crunch Voices
• Integrated noise gate & reverb
• Revv's Multi-Voice Red channel brings fat, warm gain for all genres
• Fully programmable
• Can be controlled either by simply changing programs or by calling up presets using the foot switch provided or with compatible MIDI devices
• Internal load - automatically active if no speaker is connected
• Coloured illuminated acrylic logo
• Rear bias test points with easily accessible settings for each pair of power tubes as well as a tube fault indicator
• Preamp tubes: 5x 12AX7
• Power amp tubes: 4x 6L6GC
• Controls: 3x Treble, 3x Middle, 3x Bass, 3x Level, 2x Gain, Master 1, Master 2, Presence, Depth, Virtual Cab, Level
• Switches: Wide, Bright, Fat & Cut
• Effects: Reverb & Noise Gate
• Speaker outputs: 4 ohms (2x 6.3 mm jack), 8 ohms (2x 6.3 mm jack), 1x 16 ohms (6.3 mm jack)
• Effects loop: Buffered Serial Effects Loop
• Input: 6.3 mm jack
• FX Send & Return: 6.3 mm jack
• Footswitch connection: 5-pin DIN
• USB (Type B)
• MIDI In & Thru
• 2 x Stereo direct outputs: XLR
• Cab Lighting: 4-pin DIN
• Dimensions : 673mm x 254mm x 267mm
• Weight : 20.9kg
• Includes 6-way footswitch & protective cover
• Handmade in Canada
