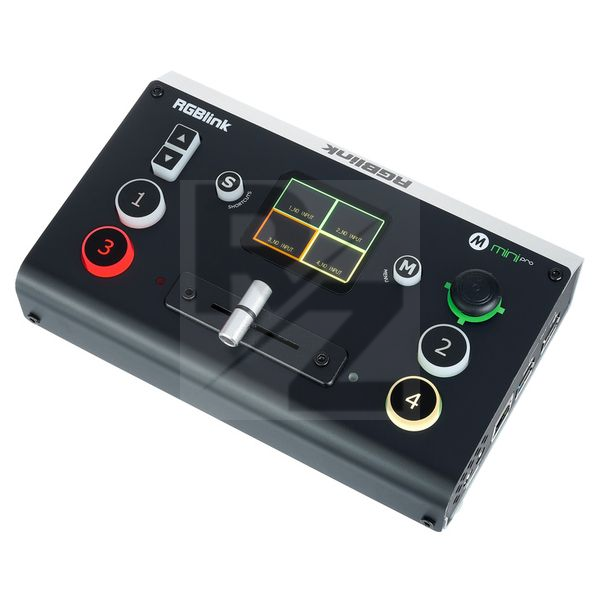

RGBlink Mini Pro

Technical Data

• Manufactured by RGBlink
• Released in 2021
• Average price : $487
• PTZ Camera control in 8 directions with joystick and zoom rocker
• 4 x 4K HDMI inputs with integrated scaler
• 2" LCD touch display for control and video preview
• USB streaming output for PC or Mac
• USB recording output for up to 2 TB SSD/USB sticks
• Audio mixer with delay up to 160 ms
• Chroma Key
• Configurable PIP video overlay
• Broadcast-style T-bar
• Shortcut button for saving and recalling preset viewing angles of PTZ cameras
• Input: 4 x HDMI2.0 (HDMI-A)
• Output: 1 x HDMI 1.3 (HDMI-A)
• 1 x USB 3.0
• 1 x USB 2.0 (type A)
• Audio: 1x 3.5mm stereo jack input/output each
• Network: 1x RJ45 LAN
• Resolution Input: SMPTE: 720p50 at 60, 1080i50, 2160p23/24/30/50/60, 2160p at 60, Vesa: 1024 x 768 at 60, 1280 x 720 at 60, 1280 x 768 at 60, 1280 x 800 at 60, 1280 x 1024 at 60, 1360 x 768 at 60, 1366×768 at 60, 1440 x 900 at 60, 1600 x 1200 at 60, 1680 x 1050 at 60, 1920 x 1080 at 60, 1920 x 1200 at 60, 3480 x 2160 at 60, 4096 x 2160 at 60
• Resolution Output: SMPTE: 720p60, 1080p60, Vesa: 1024 x 768 at 60, 1280 x 720 at 60, 1280 x 768 at 60, 1280 x 1024 at 60, 1360 x 768 at 60, 1900 x 1200 at 24/25/30/50/60
• Supported standards: HDMI 2.0, USB 3.0, ITU-T H.265 / ISO / IEC 23008-2
• Supported protocols: PTZ: VISCA
• Colour space and sampling: RGB 4:4:4 YUV
• Power supply: 12 V / 1.5 A, max. 18 W
• Dimensions: 180 x 118.3 x 58.4 mm
• Weight : 500g
