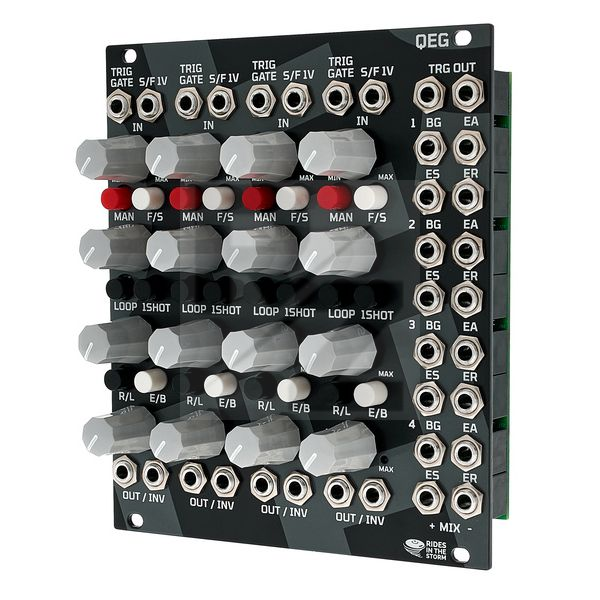

Rides In The Storm QEG
Eurorack Module
Latest User Reviews
Superb module
The QEG is a great bang for the buck.. not only do you get 4 independent ADSRs which can be cascaded. You also have looping function and tons of trigger outs.. the only niggle is the buttons can be a bit fiddly but really not much of an issue at all. Highly recommended
Technical Data
- Manufactured by Rides In The Storm
- Released in 2022
- Average price : $250
- A quad envelope generator
- ADSR envelope per each channel with one shot and a loop mode
- Two selectable time ranges (Fast / Slow) switchable via a CV input
- Attack times: 0.2 ms - 10 s
- Decay / release times: 0.4 ms - 30 s
- Output voltage: 0 - 8.5 V
- 4 Different selectable characteristics
- Trigger input and manual trigger button
- Positive and inverted signal output
- Reset behaviour selectable via a jumper
- 4 Trigger outputs per channel: Begin of Attack, End of Attack, End of Sustain, End of Release
- Current consumption: 120 mA (+12 V) / 100 mA (-12 V)
- Width: 20 TE
- Depth: 25 mm
