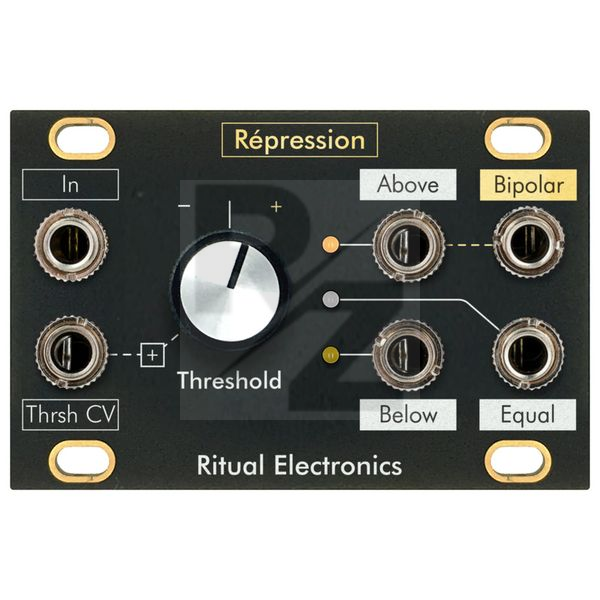

Ritual Electronics Répression

Logic Module

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Ritual Electronics
Released in 2022
Average price : $113
Voltage-controlled comparator
Compares an input signal with the value of the bipolar threshold controller and generates 4 different logic signals from it
Signal input and threshold CV input
Outputs for Above (input > threshold), Below (input < threshold), Equal (trigger when input = threshold) and Bipolar (+/-5V variant of the Above output)
Current: 53 mA (+12 V) / 26 mA (-12 V)
Width: 12 HP
Depth: 35 mm
