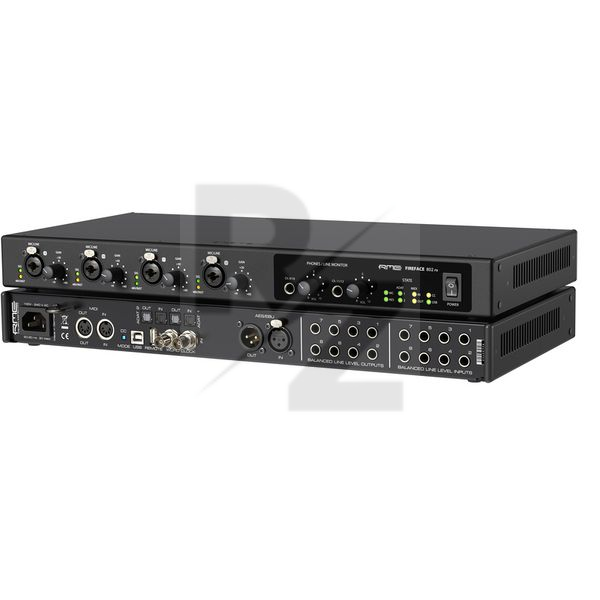

RME Fireface 802 FS AE

Technical Data

• Manufactured by RME
• Special edition
• 60 Channel USB 2.0
• 24 Bit / 192 kHz
• Built-in DSP mixer with effects section: EQ, dynamics and reverb
• 4 Analogue microphone preamps with gain control
• Inputs can be controlled remotely via software
• TotalMix Remote
• TotalMix FX mixing / routing
• DigiCheck software
• DC-coupled outputs - CV/Gate Voltage Control
• Stand-alone operation with setup recall
• ICC - Intelligent Clock Control
• SteadyClock FS
• +48 V phantom power
• Class compliant
• Built-in switched-mode power supply
• 100 - 240 V AC
• 30 Watts
• 4 x Mic / Instrument / Line input XLR / jack 6.3 mm combo
• 8 x Line input 6.3 mm jack balanced
• 8 x Line output 6.3 mm jack balanced
• AES / EBU input and output XLR
• Word Clock input and output BNC
• 2 ADAT / S/PDIF optical input and output
• 2 Stereo headphone outputs 6.3 mm jack
• MIDI input and output
• USB
• Remote connection for optional ARC USB (not included)
• Format: 19" 1 U
• Dimensions : 438mm x 44mm x 242mm
• Weight : 2.8kg
