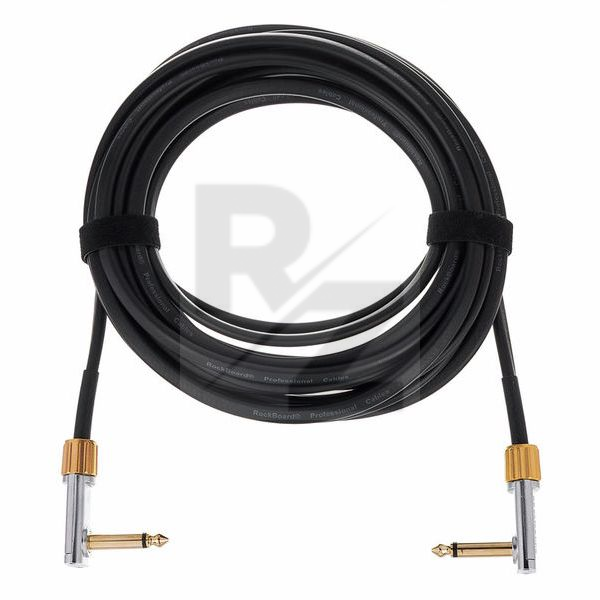

Rockboard Premium Flat Instr. Cable AA

Flat instrument cable

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Rockboard
Released in 2019
Average price : $24
Length: 6 m
Straight 6.3 mm jack < - > angled 6.3 mm jack
Cable with rectangular cross-section
Space-saving and extra narrow jack plugs
Flat rectangular cable prevents cable breakage and twisting
Flexible copper conductor: 50 x 0.12 mm
Signal insulation PE (polyethylene ø 2.9 mm / 7/64")
PVC cable sheath
Semi-conductor screen (0.5 mm) between signal isolation and screen for cable microphone prevention
100% Braided, tinned copper shield 16 x 4 x 0.15 mm
Aluminum foil shield (0.06 mm)
Conductor/screen capacity: Less than 8 pF/Decimeter
Conductor resistance: Less than 8 mOhm/decimeter
Working temperature: -15º C to +70° C
Gold-plated, 6.3 mm mono jack plug
External dimensions of cable: 7.6 x 4.8 mm (rectangular)
Outer dimensions of angled plug (L x W x H): 43.5 x 16 x 11.5 mm
Color: Black with gold and silver connector housings
